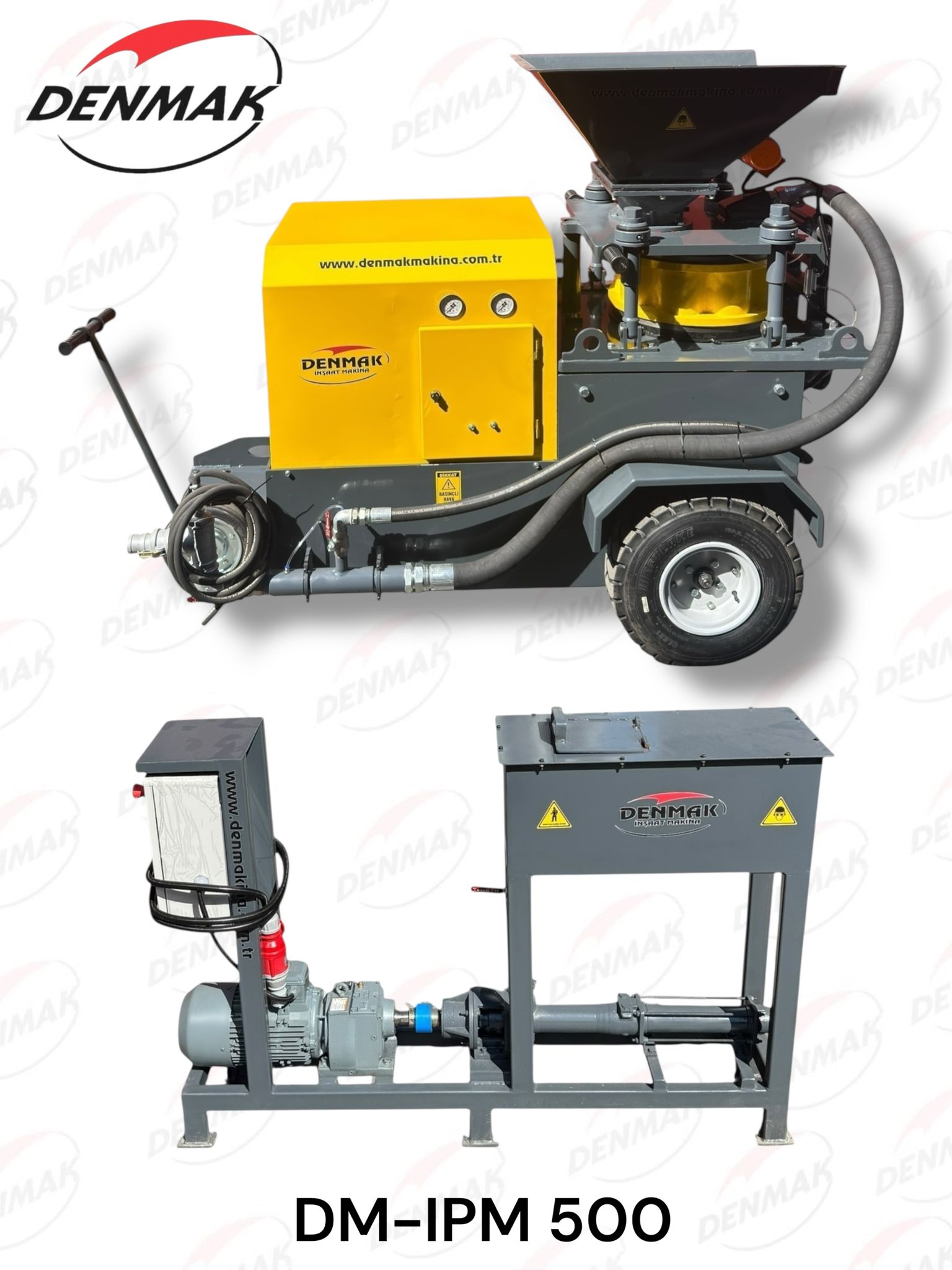

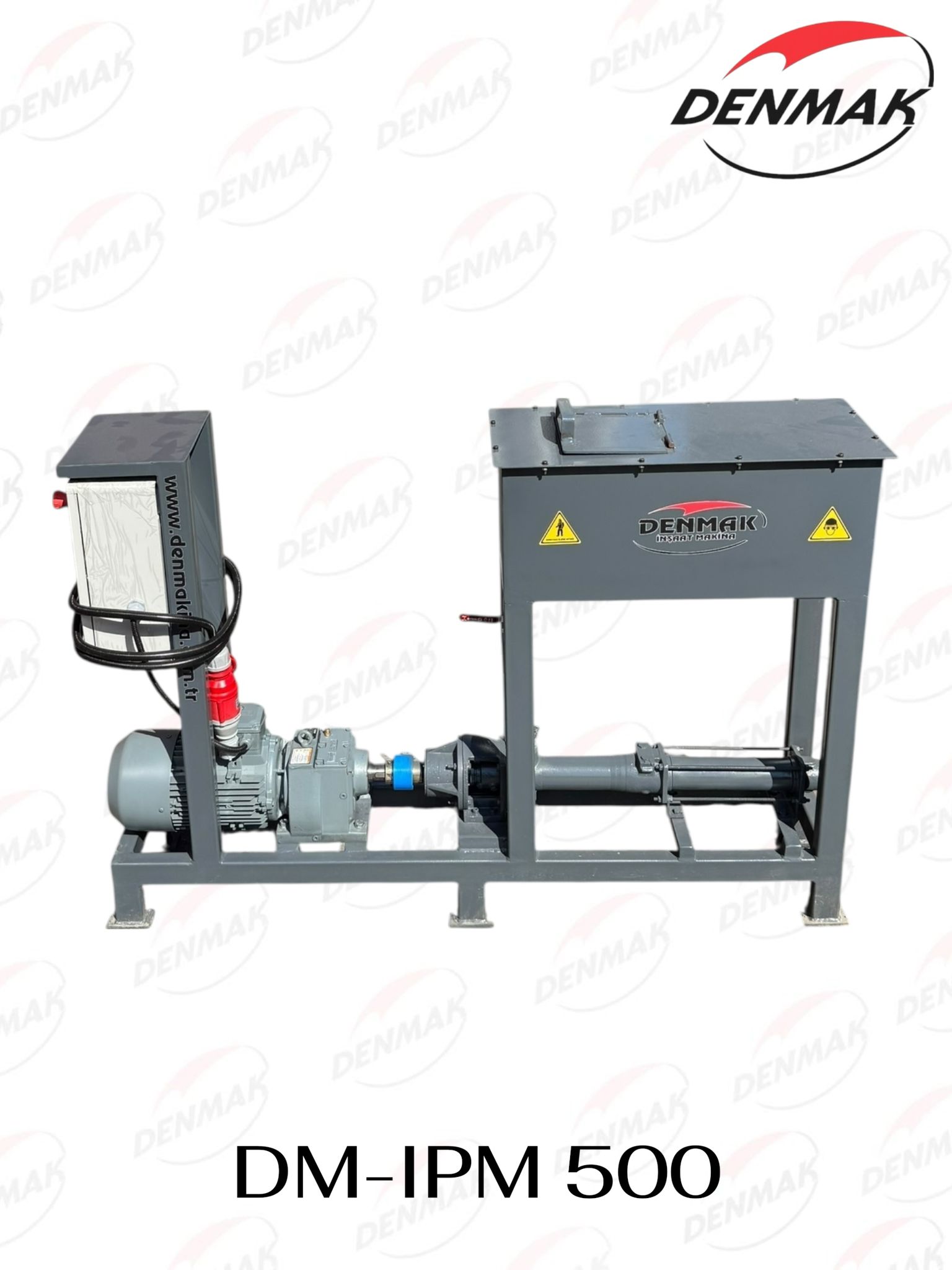

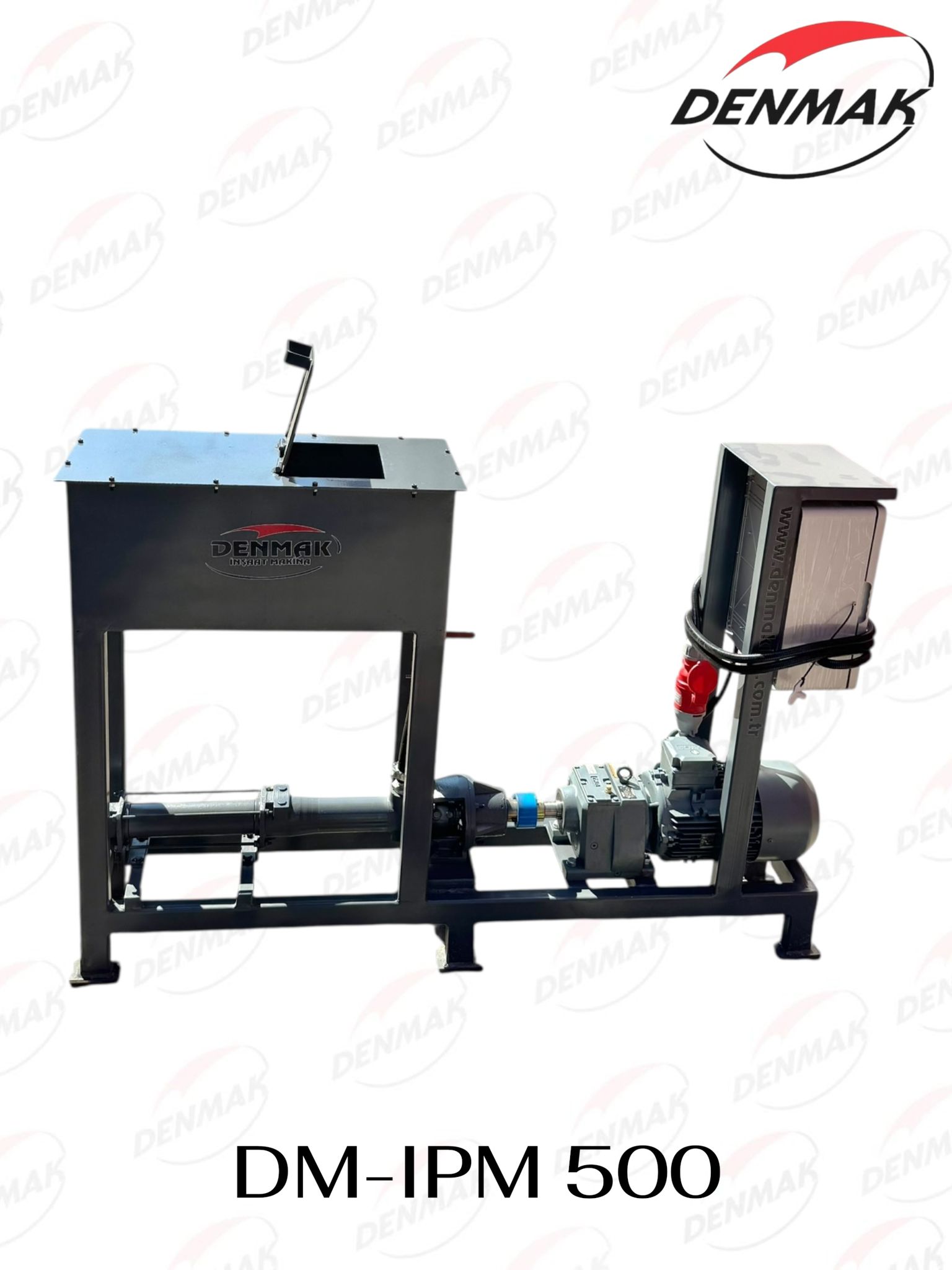

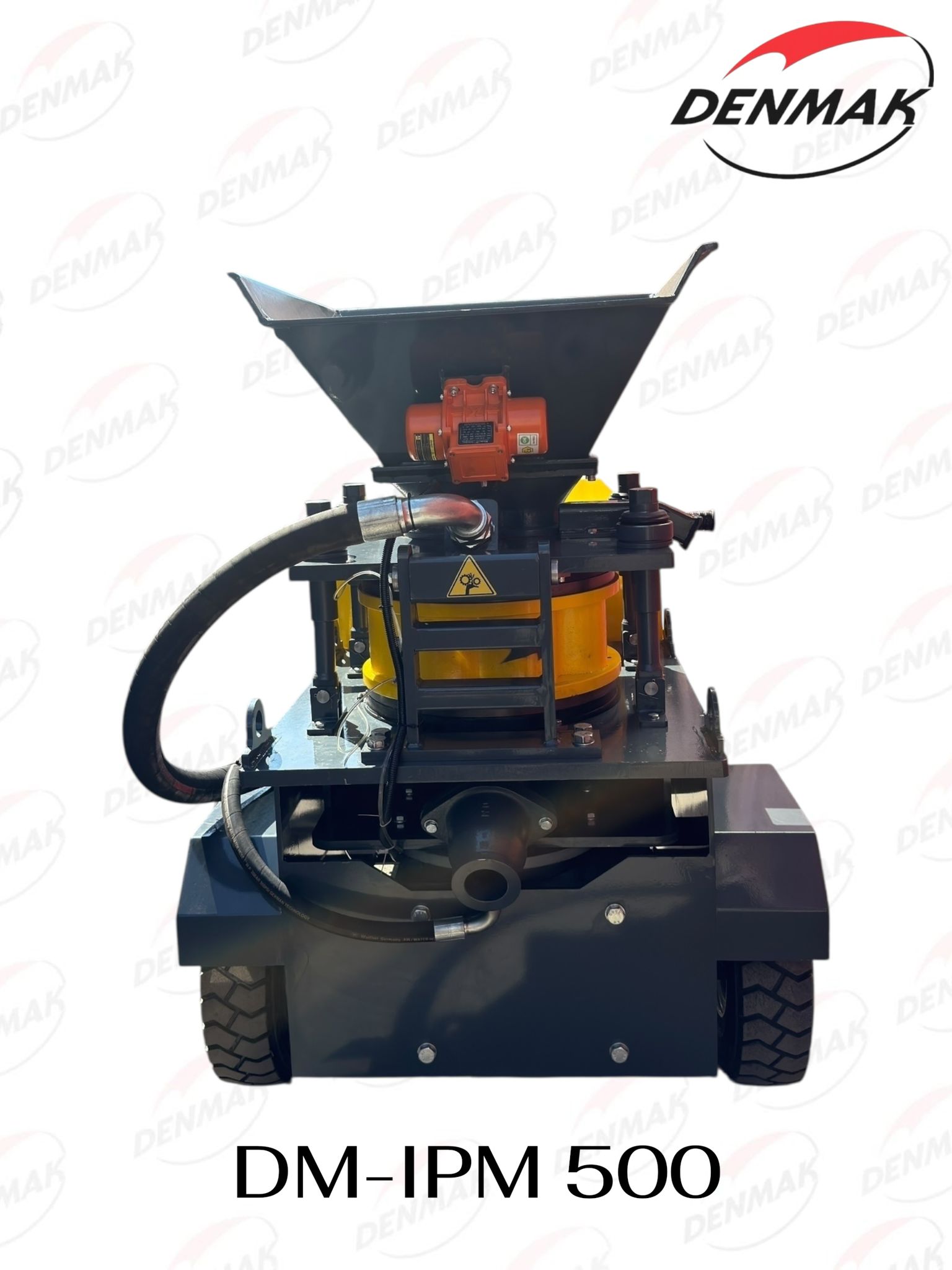

IPM 500 Wet and Dry Concrete Spraying Machine
DM - IPM 500 is a powerful and versatile shotcrete machine suitable for both wet and dry mixes. It is an ideal solution for tunnels, mining, bridges, buildings, and slope stabilization projects.
Key Features:
- Smart adjustable speed control for wet and dry mix
- Motor overload protection
- Compact design for narrow and low spaces
- Easy manual operation
- Fast maintenance with no calibration needed
- Compatible with aggregate up to 12 mm
- Capacity: 10 m³/h (wet) and 12 m³/h (dry)
- Portable structure with chassis or wheeled options
- Synchronized operation with optional dosing pump
An ideal choice for professionals seeking durability and efficiency on demanding job sites.
IPM-500 – Technical Specifications
| Specification | Value |
|---|---|
| Concrete Transfer Capacity | 4–10 m³/hr |
| Spraying Air Pressure | 8–12 bar |
| Spraying Air Flow Rate | 15–21 m³/min |
| Concrete Delivery Hose Size | 2½″ – 12 bar (63 / 85 mm) |
| Wet Mix Range | Horizontal 40 m / Vertical 15 m |
| Dry Mix Range | Horizontal 100 m / Vertical 40 m |
| Aggregate Size | Maximum 12 mm (5–12 mm) |
| Grease Pump | Automatic / Manual |
| Main Motor Power | 15 kW – 380V / 50–60 Hz |
| Vibration Motor Power | 0.17 kW – 380V / 50–60 Hz |
| Concrete Slump | 12–15 cm |
| Machine Weight | 1250 kg |

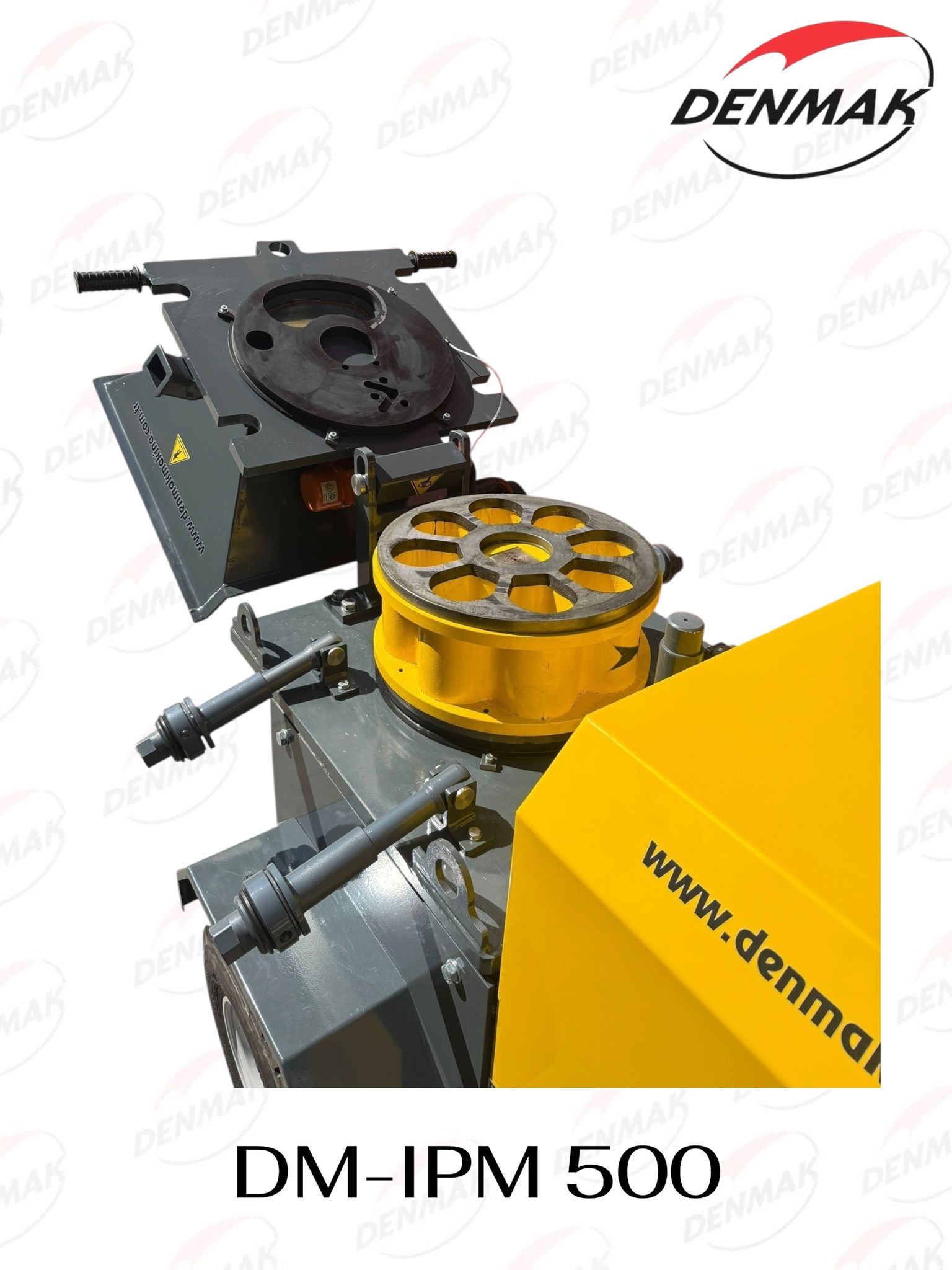

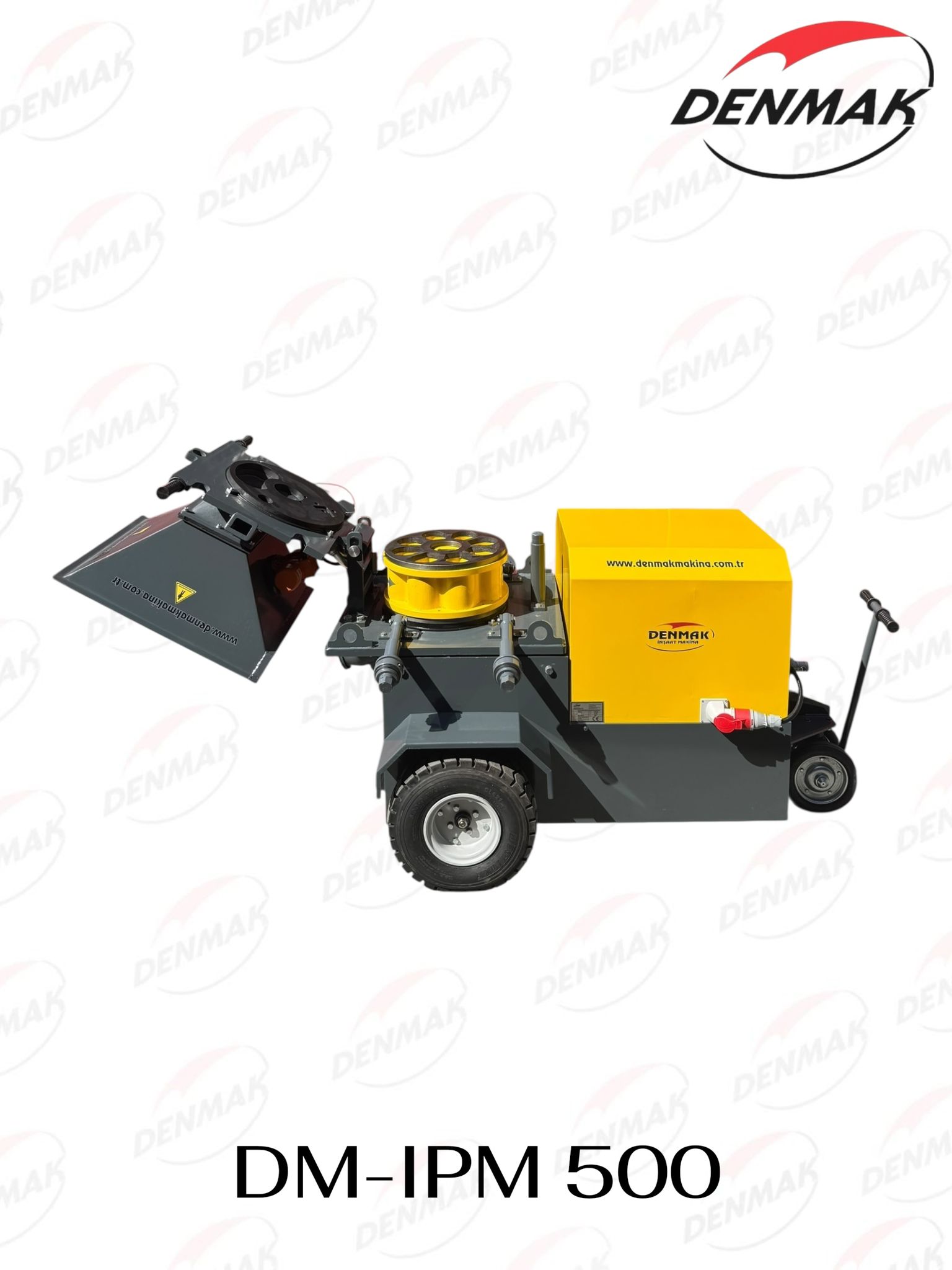

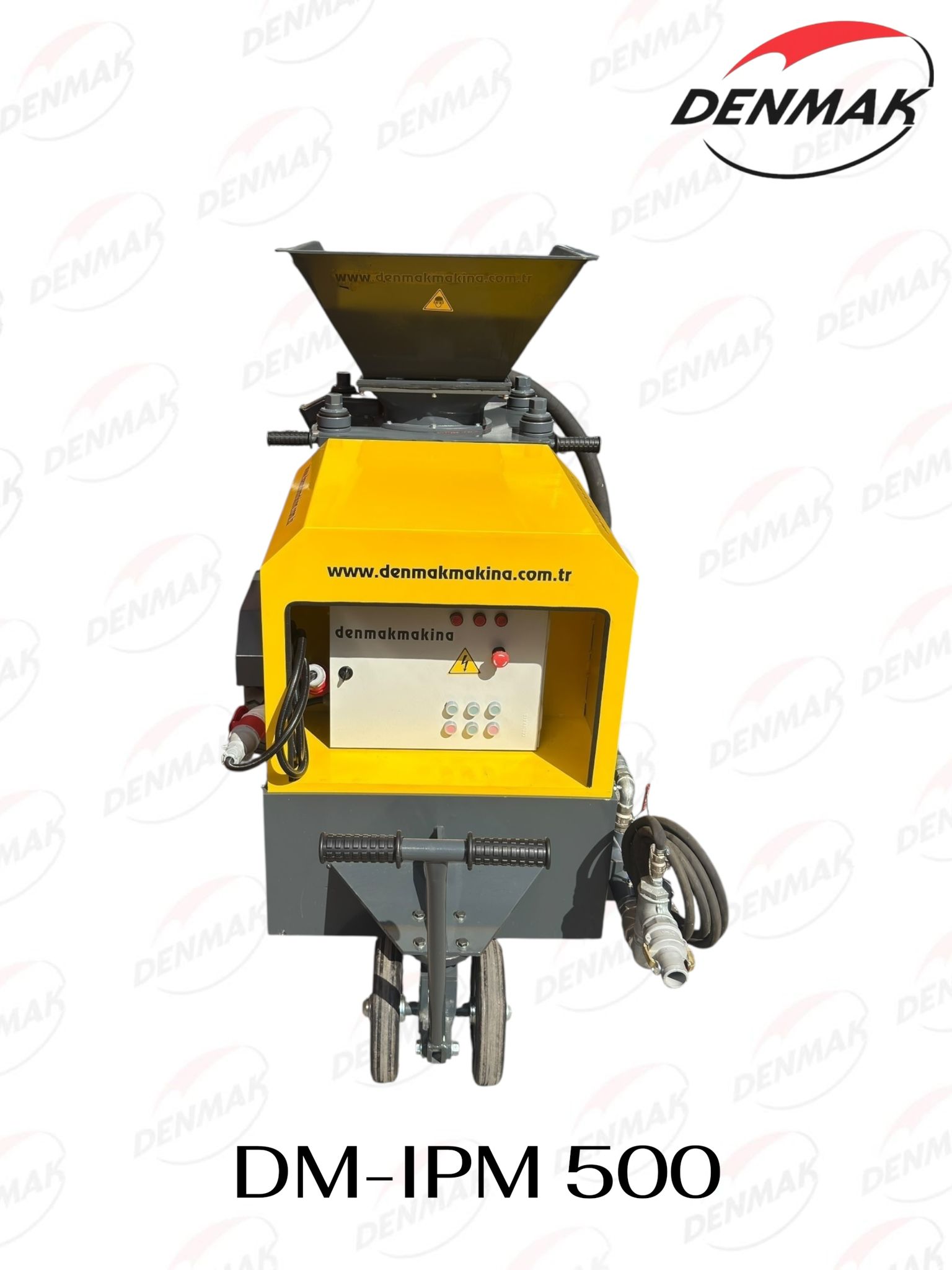

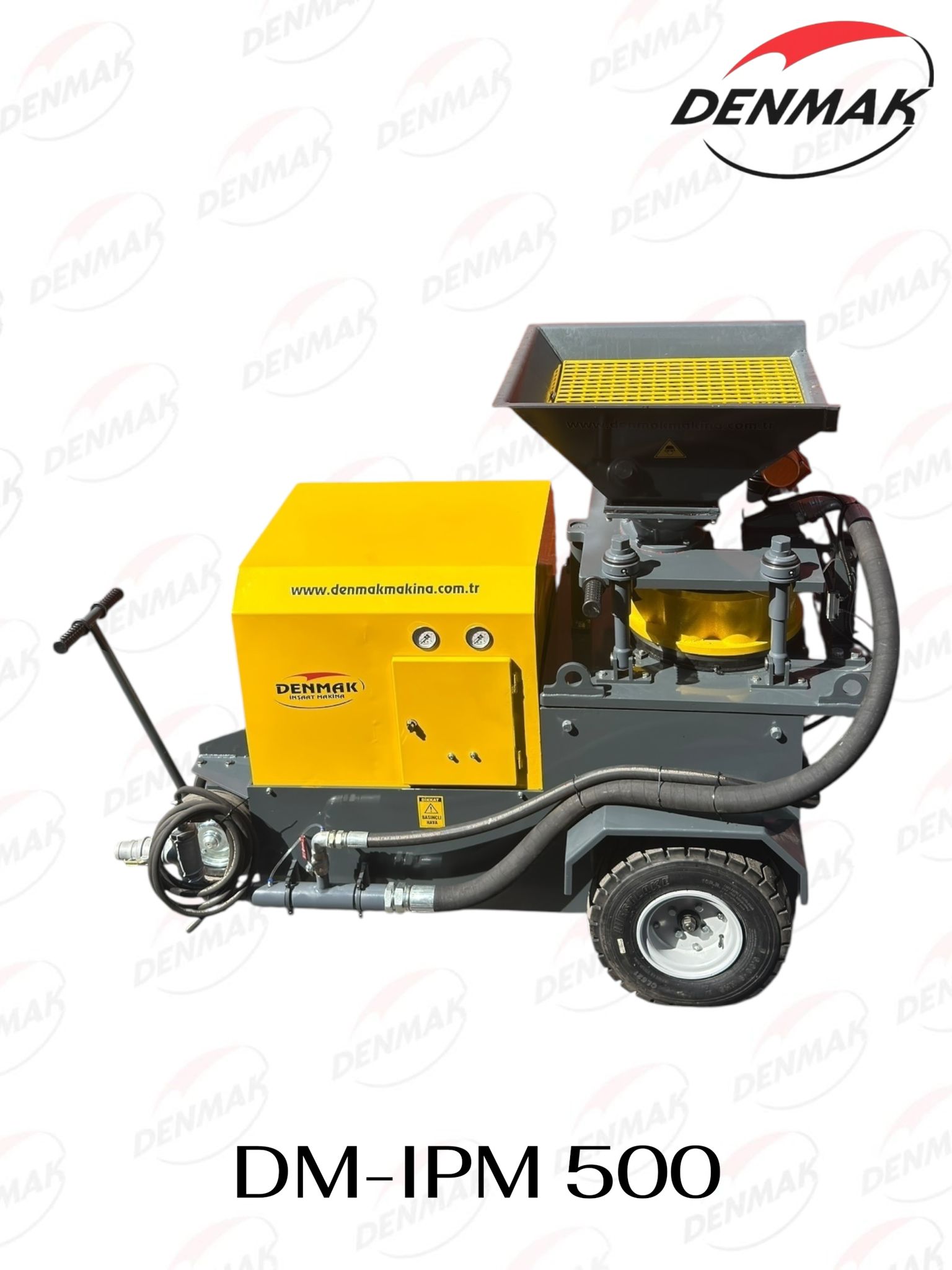

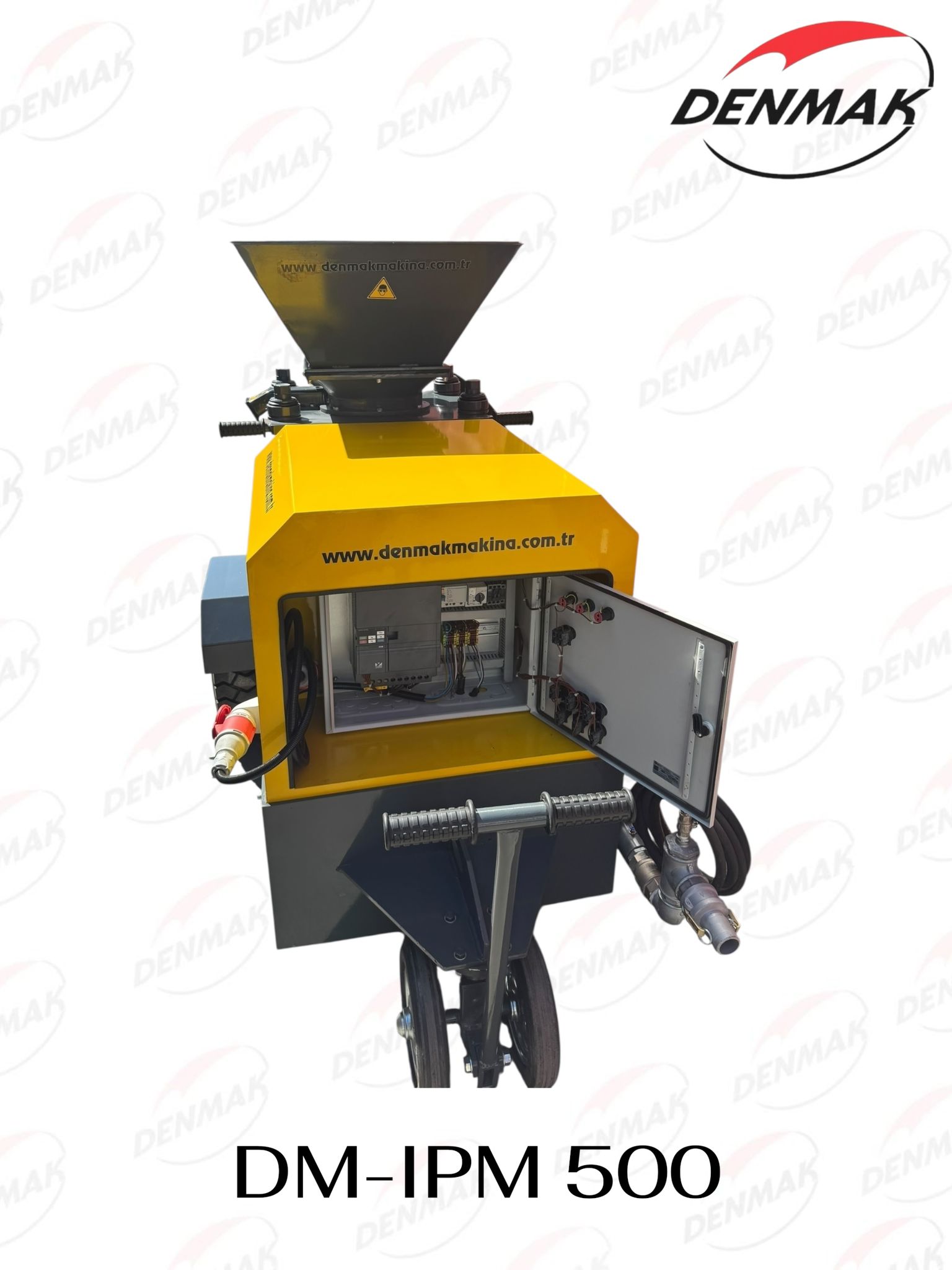

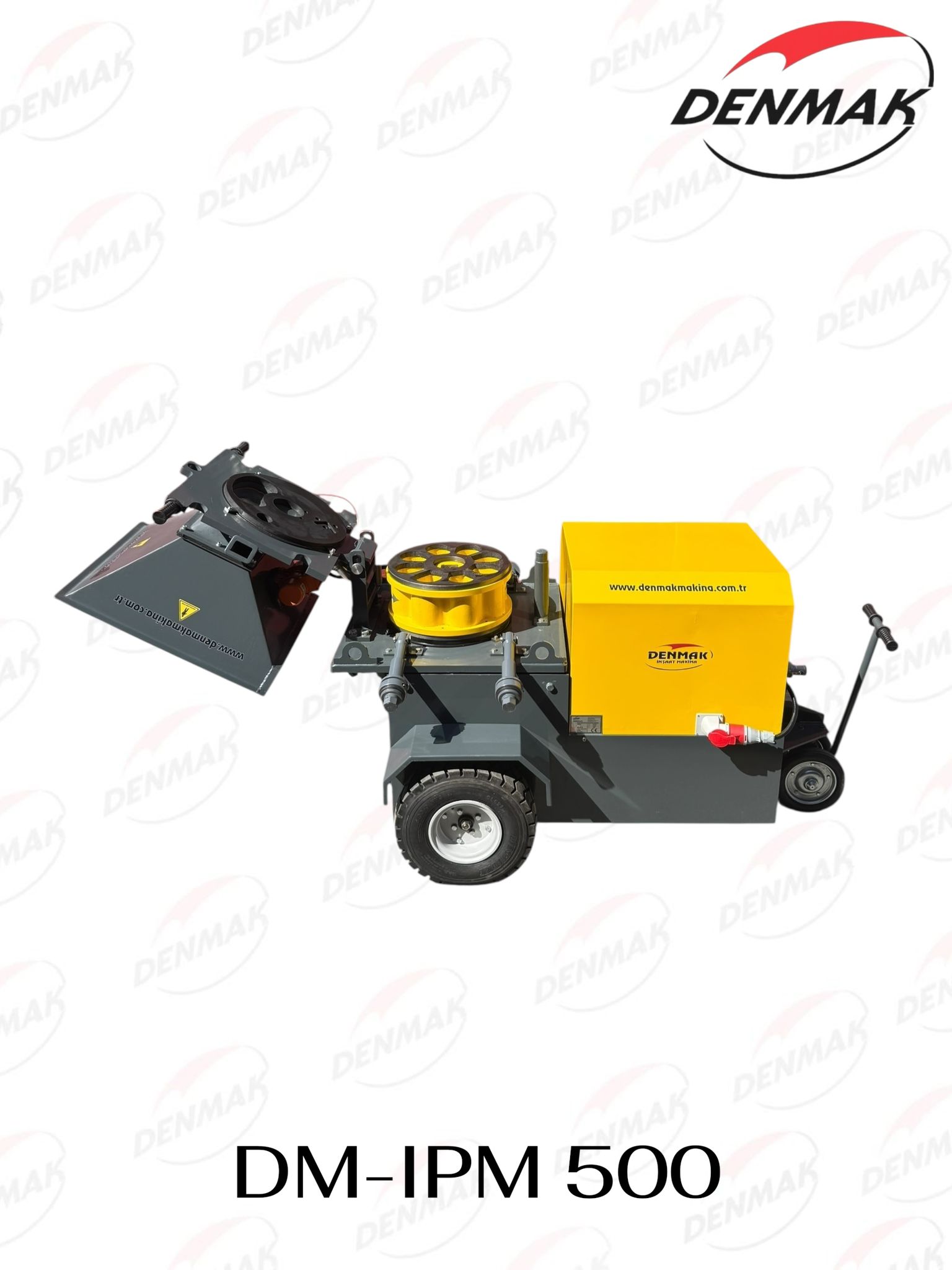

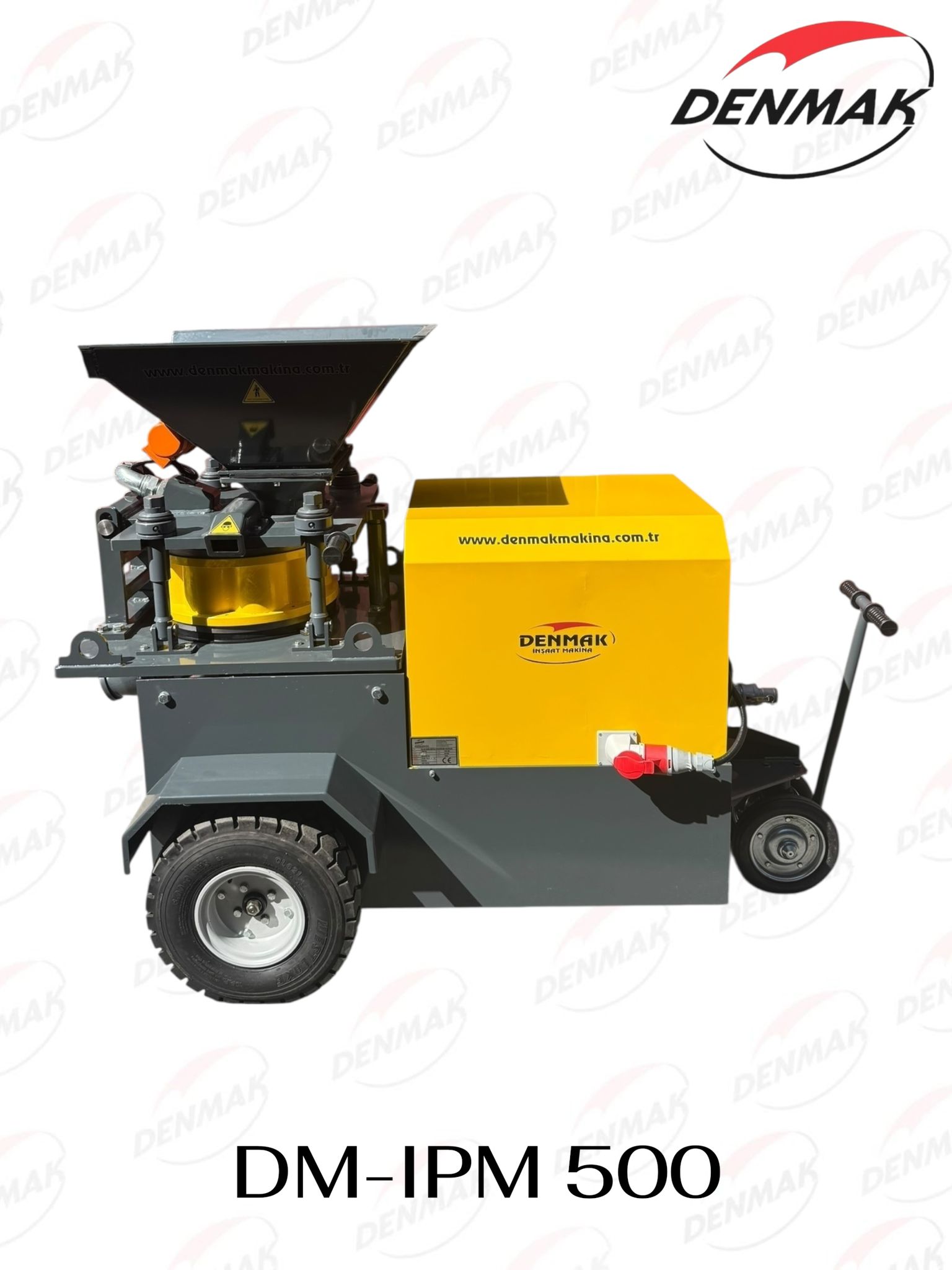

Photo Gallery
