DM-PEM 100 Piston Type Cement Injection Machine

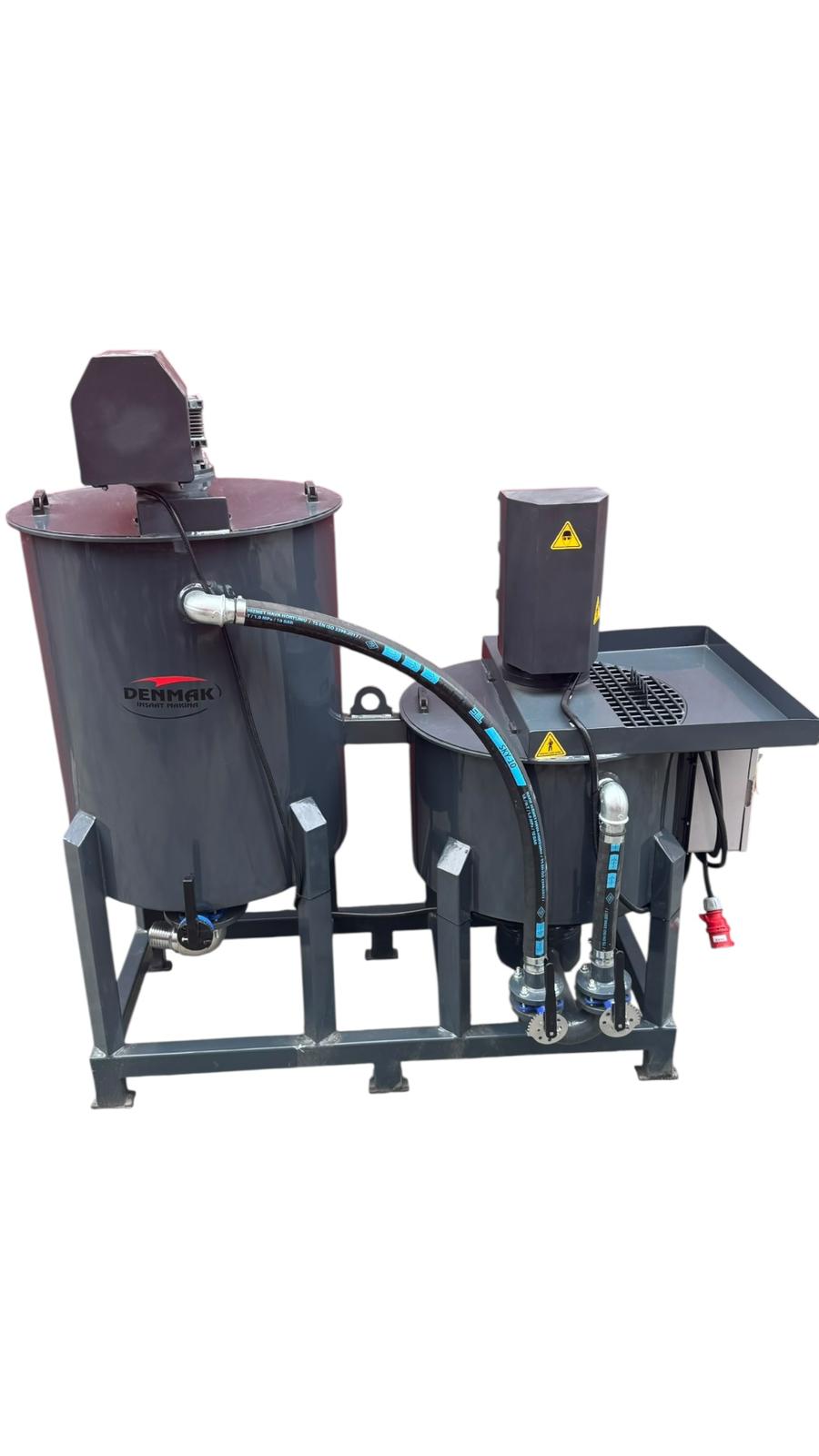

The DM-PEM 100 is a double-boiler, piston-type cement injection machine designed for zero maintenance costs. Utilizing hydraulic propulsion, it efficiently pumps grout with continuous operation. Its innovative double-boiler system allows one boiler to mix materials while the other pumps the stored mixture, ensuring an uninterrupted workflow.
Ideal for applications such as cement flooring, grouting, reinforced concrete construction, and anchorage, it can also handle pumping and mixing of other materials with similar viscosity. The machine features a high hydraulic oil capacity combined with water cooling, enabling reliable performance even in high-temperature or poorly ventilated environments.
The piston thrust power ranges from 6 to 20 tons, customizable to meet client requirements. Equipped with titanium and chrome-coated cylinder walls, the machine resists abrasion and corrosion, allowing use with sand and other abrasive materials.
Key features include a high pumping flow rate, low hydraulic pressure, reduced piston frequency, and a maintenance-free valve system — all contributing to operator safety and prolonged machine lifespan. Electrical components are sourced from Siemens, while hydraulic parts come from Rexroth.
With adjustable nozzle sizes from 1.8 to 2.2 inches and injection power up to 100 bars, the PEM 100 offers ease of use, simple cleaning, enhanced operator safety, and jobsite security — making it an essential asset in your equipment lineup.
Specification | Value |
---|---|
Hydraulic Pump Motor | 11 kW – 1500 rpm |
Hydraulic Pump Capacity | 45 L |
Output Hose Diameter | 1 inch |
Piston Mechanics | Single piston |
Piston Mechanics | Sensor controlled |
Injection Pressure | 120 bar |
Pump Pressure | 150 bar |
Hydraulic Tank | 200 L |
Mixer Motor | 5.5 kW – 1400 rpm |
Storage Boiler Motor | 2.2 kW – 47 rpm |
Storage Boiler | 500 L |
Mixing Boiler | 250 L |
Pump Dimensions | 170 × 125 × 125 cm |
Boiler Dimensions | 210 × 100 × 210 cm |
Pump Weight | 650 kg |
Boiler Weight | 500 kg |

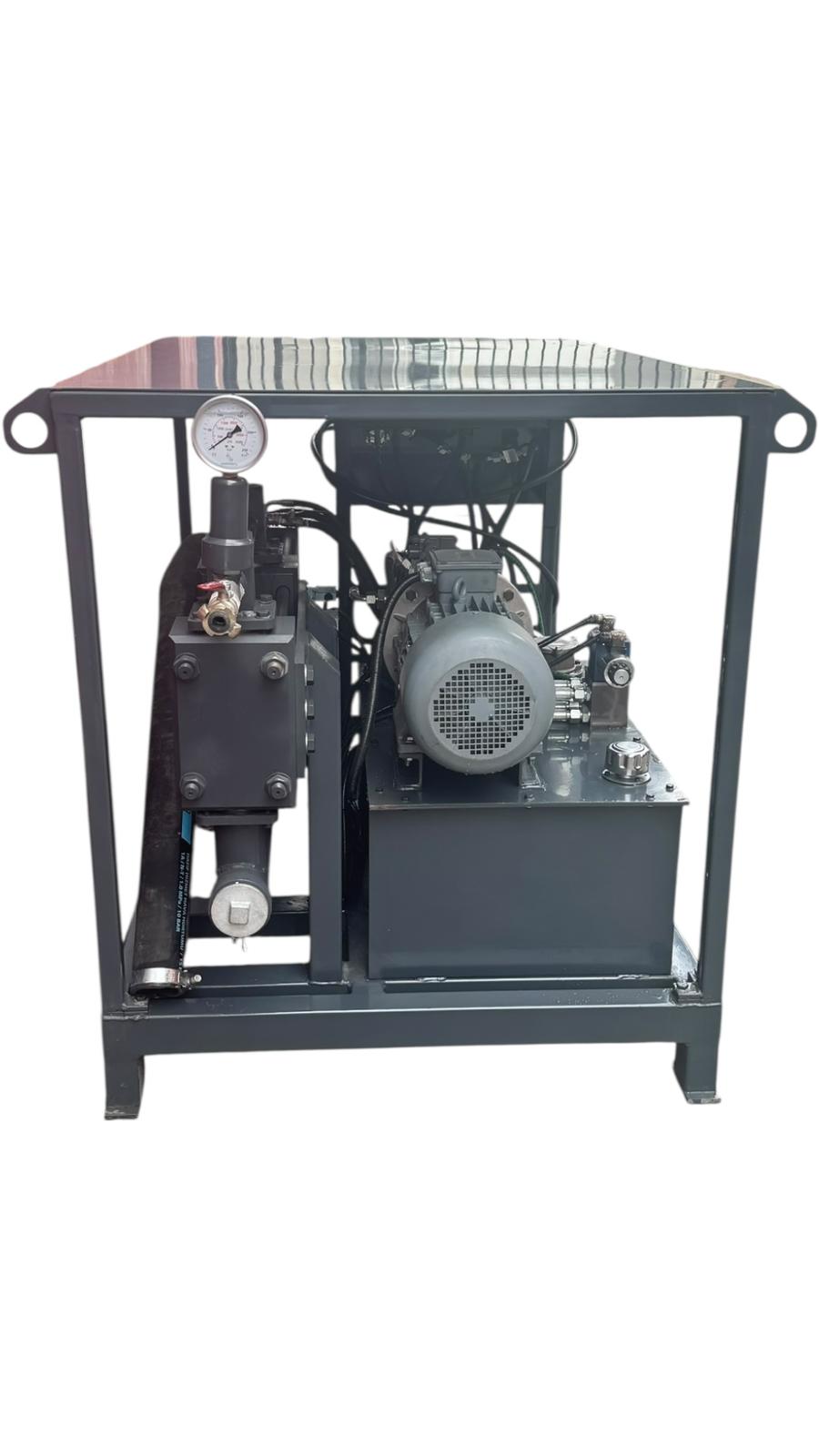

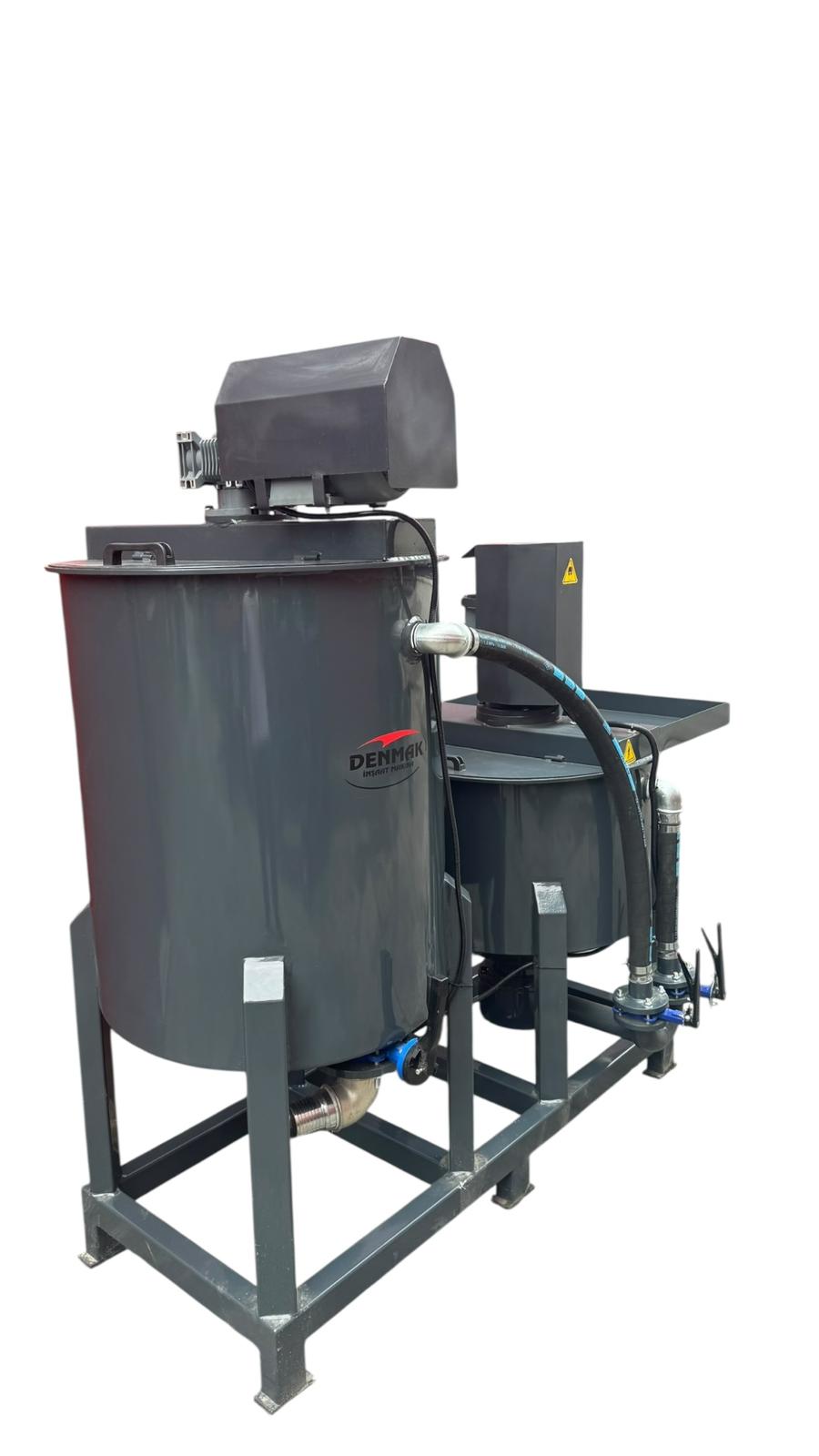

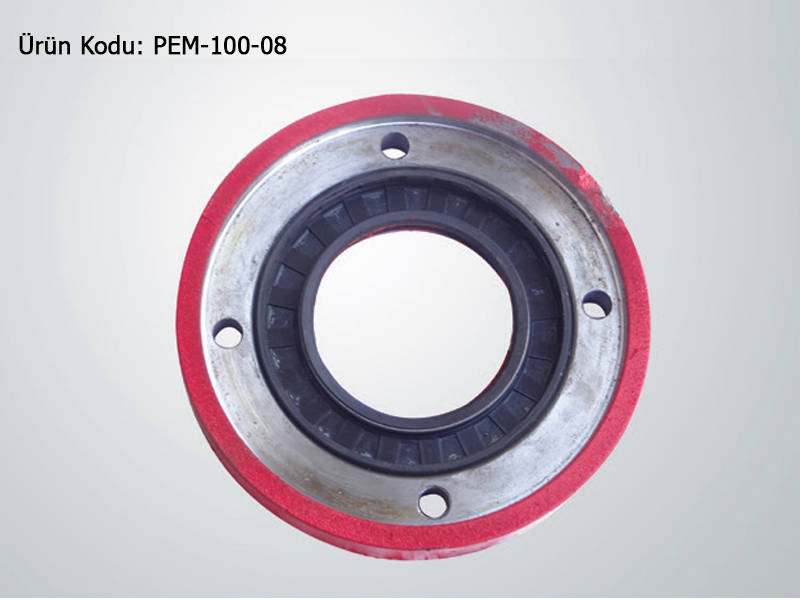

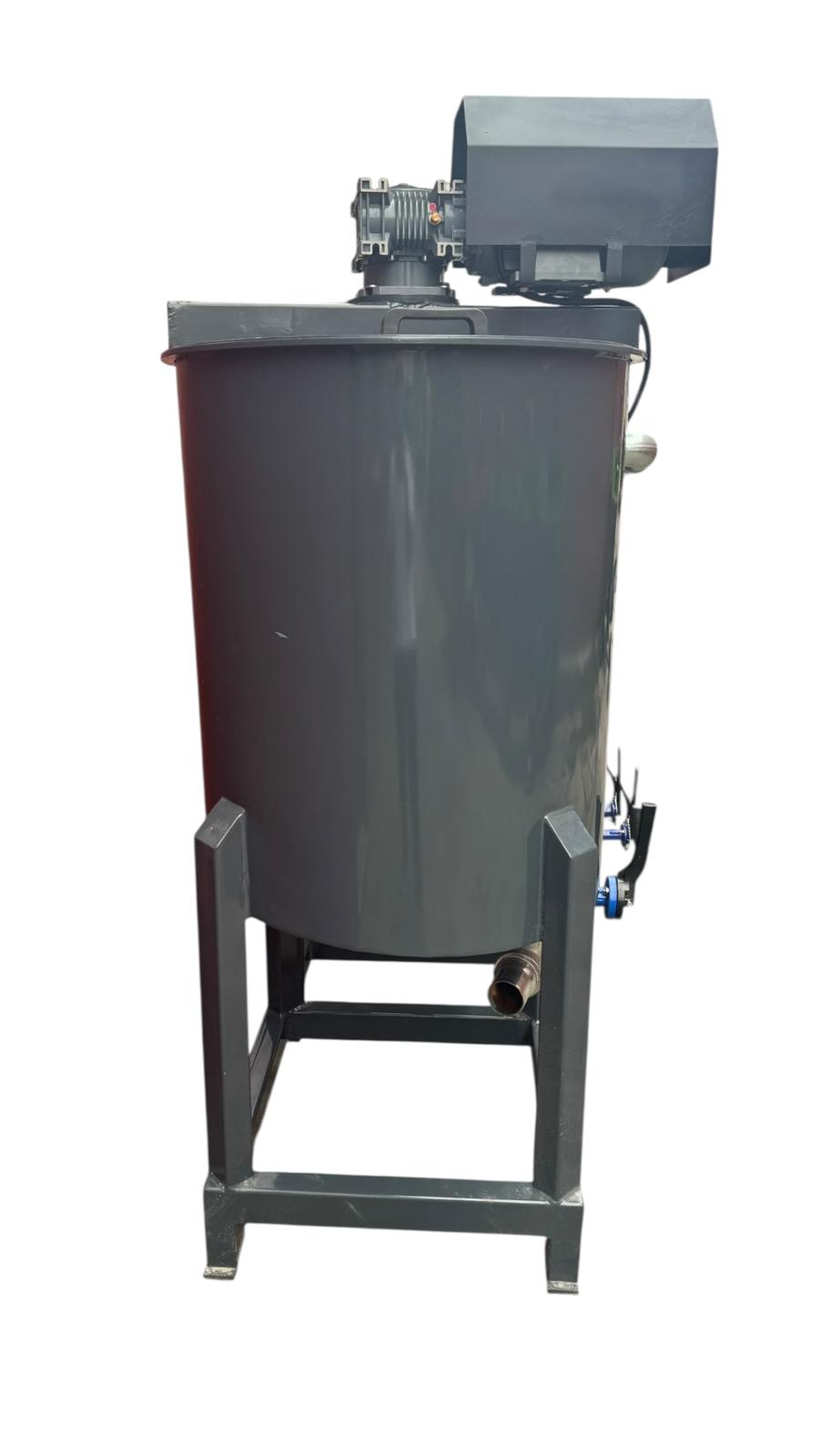

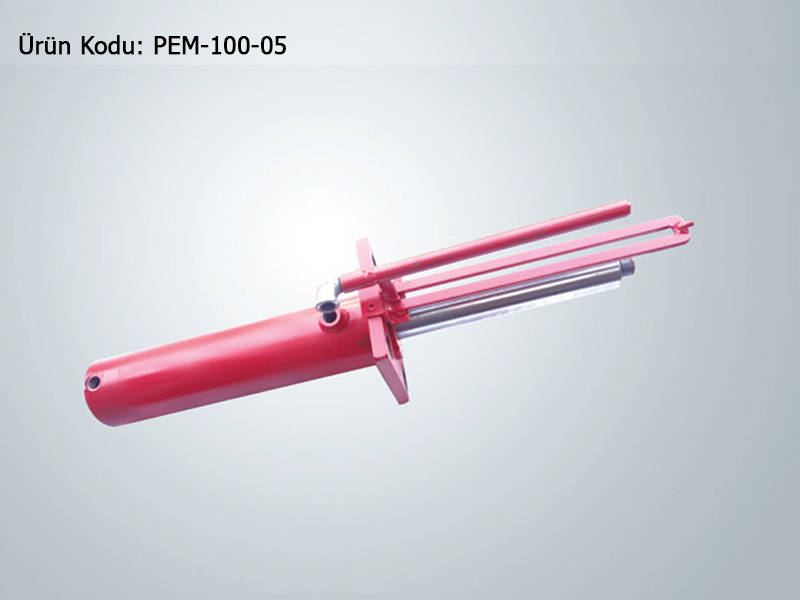

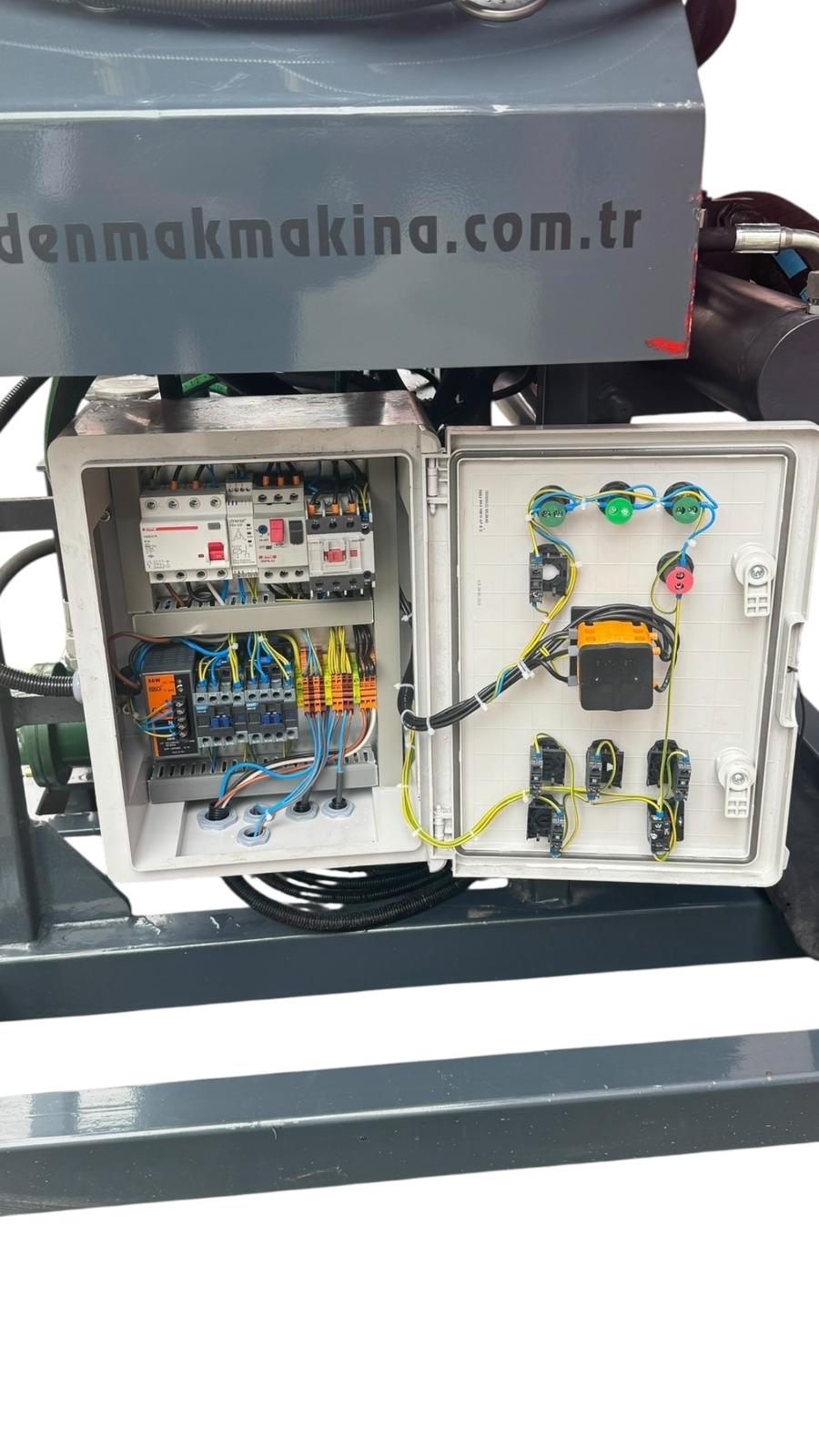

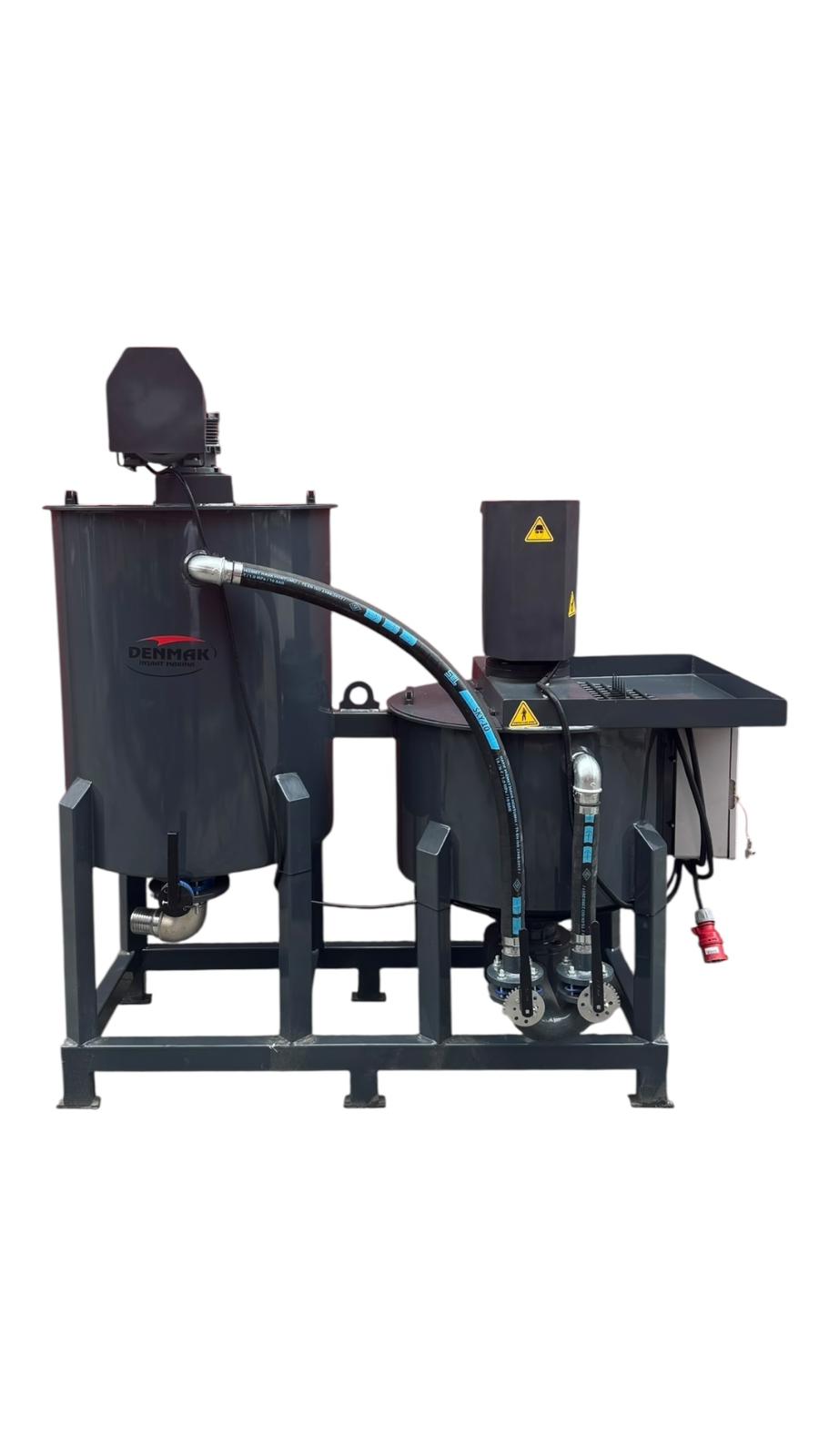

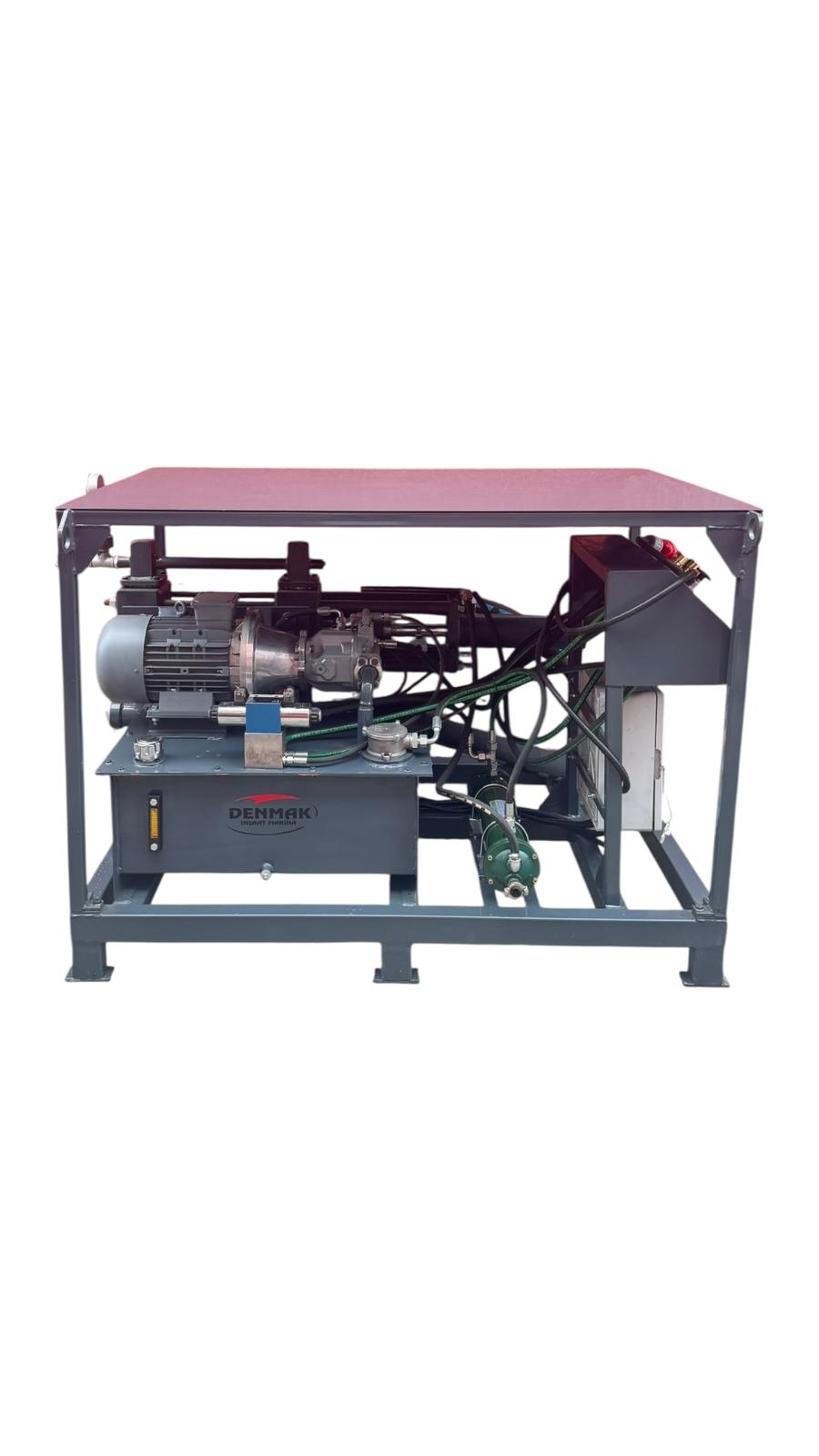

Photo Gallery
