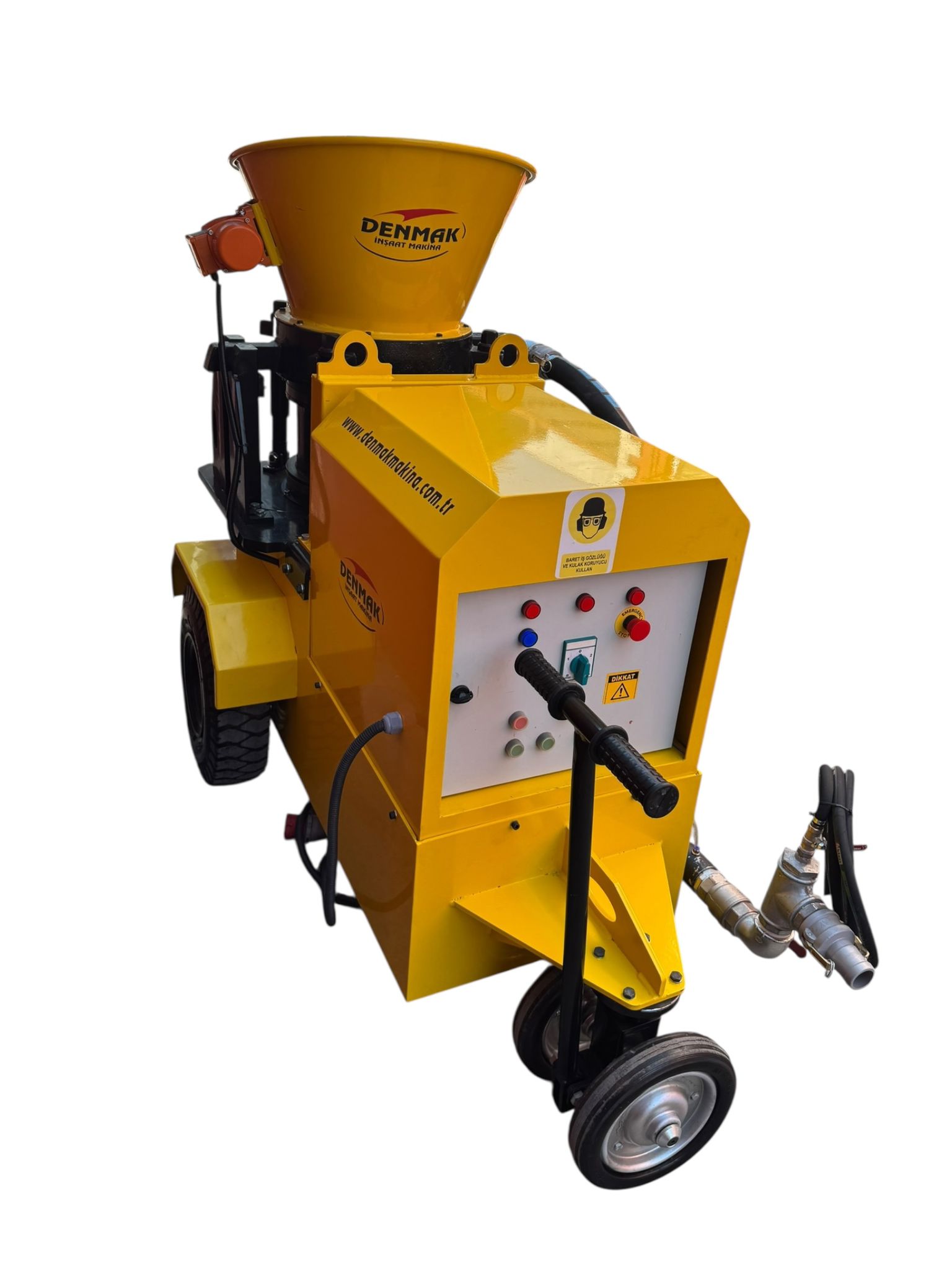

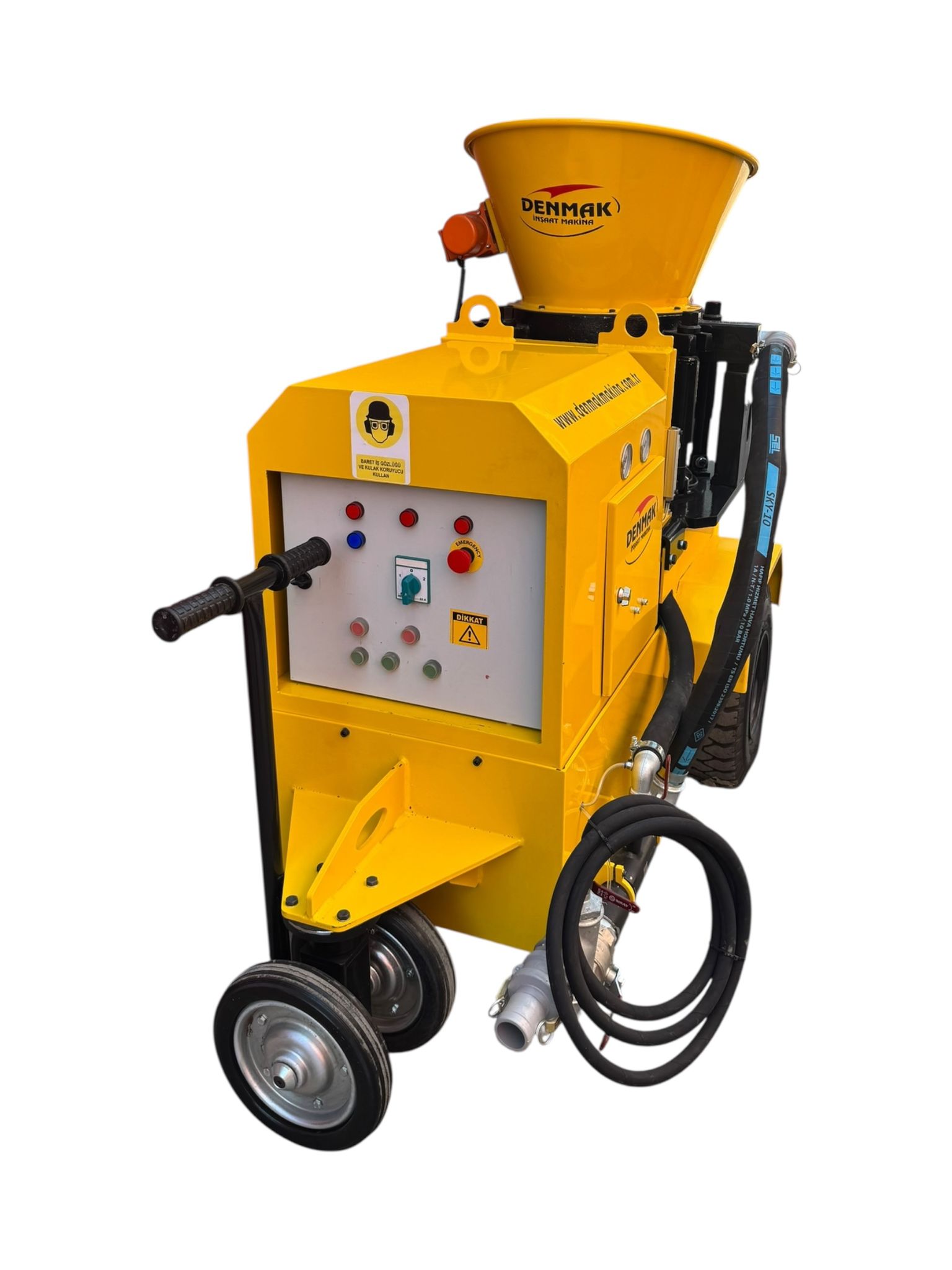

DM-BPM 750 Shotcrete Machine

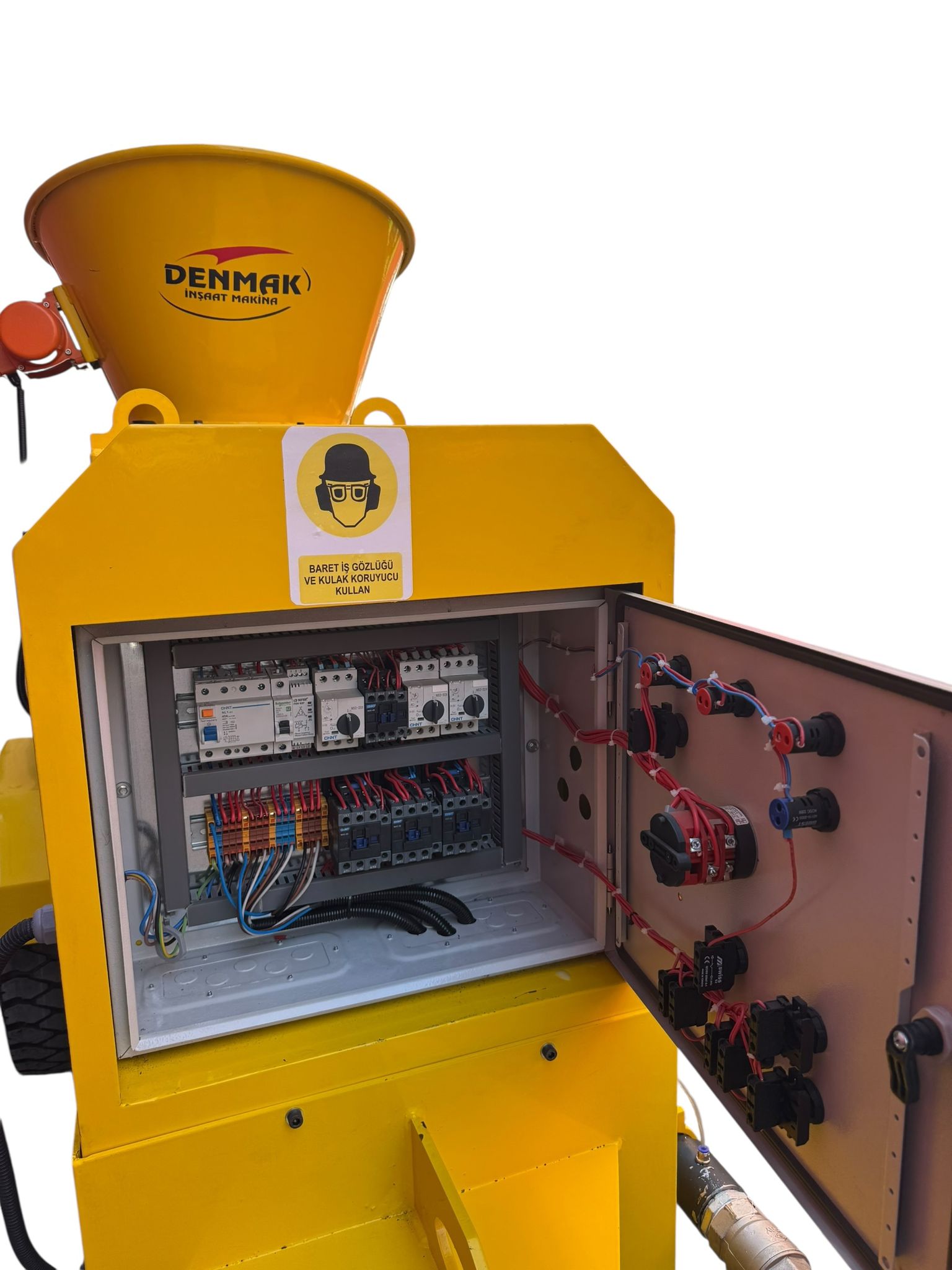

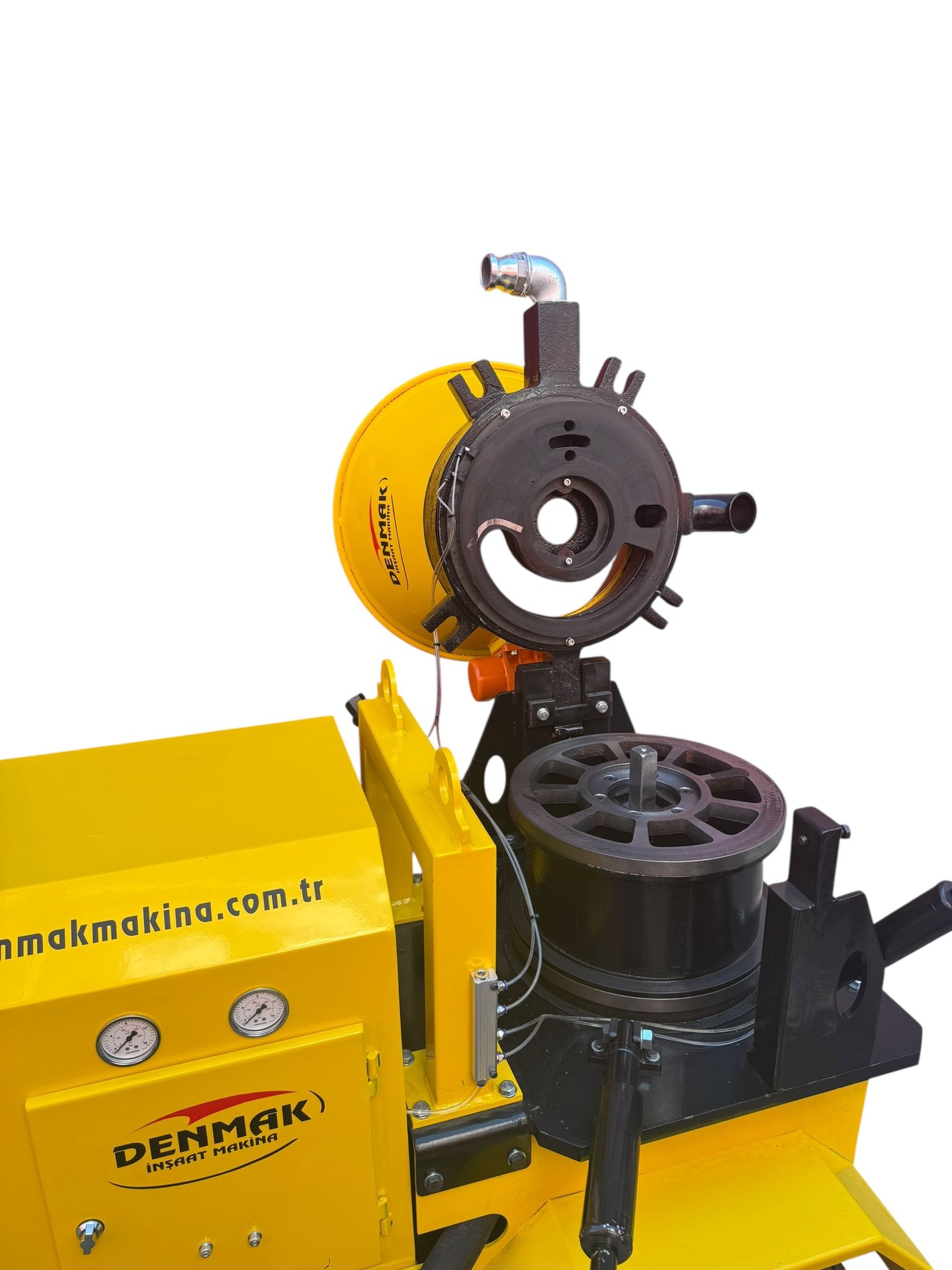

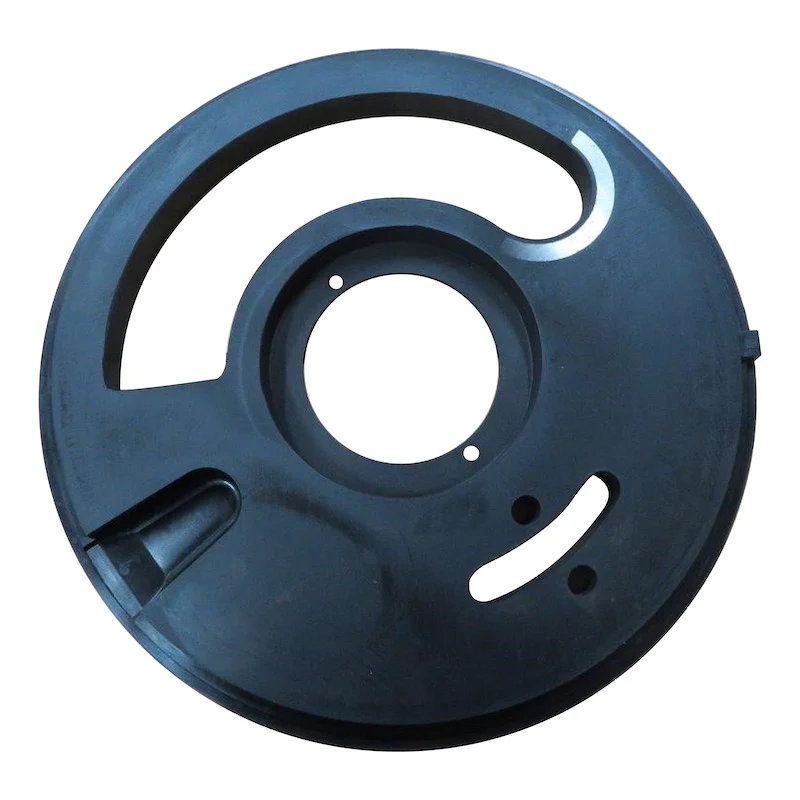

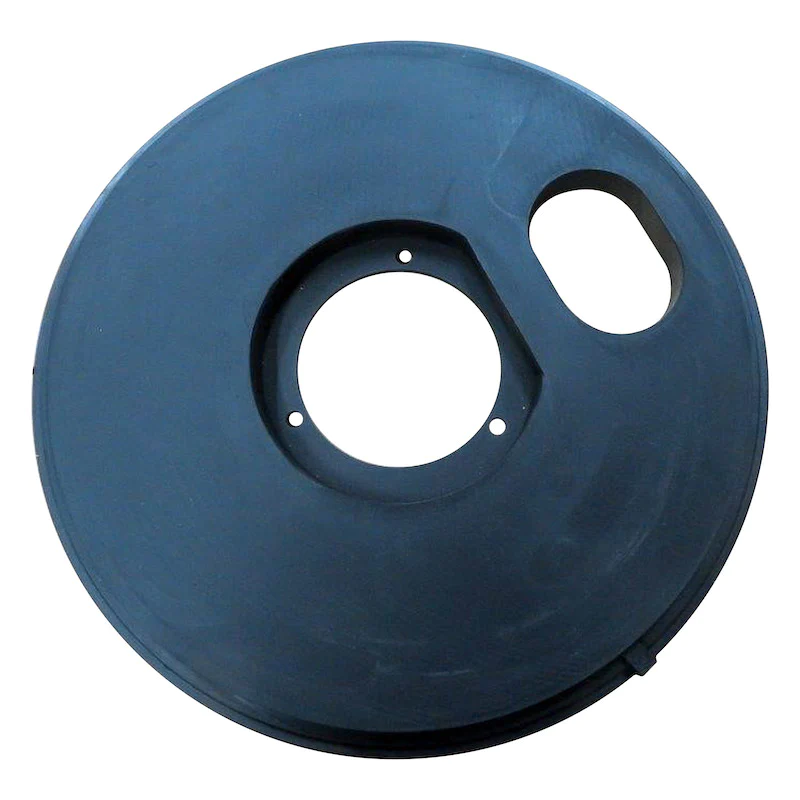

Durable, Efficient, and Cost-Effective Dry Concrete Spraying Solution The DM-BPM 750, developed by DENMAK MAKINA, is a high-performance dry-mix shotcrete machine engineered for efficiency and long-term reliability. It is perfectly suited for tunnels, mines, slopes, and structural repair applications. Key Features: Supports aggregates, pebbles, and coarse sands up to 12 mm Compatible with all standard shotcrete cements Low air and electricity consumption thanks to optimized rotor design Wear-resistant rotor plates made from hardened steel Long-life rubber discs with high performance Integrated automatic oiling system extends component life Sealed control panel (dust and water-resistant) for operator safety Includes protection systems: phase control, voltage fluctuation, overcurrent, thermal overload No calibration needed after part replacement Compact and easy to operate in confined or low-height areas The DM-BPM 750 is the smart choice for professionals seeking a powerful, low-maintenance dry shotcrete solution.
BPM 750
Specification | Value |
---|---|
Dimensions | 180 × 95 × 160 cm |
Gross Weight | 800 kg |
Rotor Volume | 1st Gear: 4 m³/hr 2nd Gear: 8 m³/hr |
Theoretical Spraying Capacity | 7 m³/hr |
Output Hose Diameter | 2.5 inch |
Air Consumption | 11–15 m³/hr @ 7 bar |
Max. Aggregate Size (Theoretical) | 12 mm |
Max. Pumping Range (Vertical) | 20 m |
Max. Pumping Range (Horizontal) | 60 m |
Main Motor Power | 7.5 kW + 11 kW |
Vibration Motor Power | 0.18 kW |
Voltage / Frequency | 380 V / 50 Hz |
Total Power Consumption | 1st Gear: 8 kW 2nd Gear: 11.5 kW |
Air Inlet Diameter | 2 inch |
Nozzle Diameter | 70 mm |
Rotor Speed | 16 rpm |
Working Temperature | 5–55 °C |

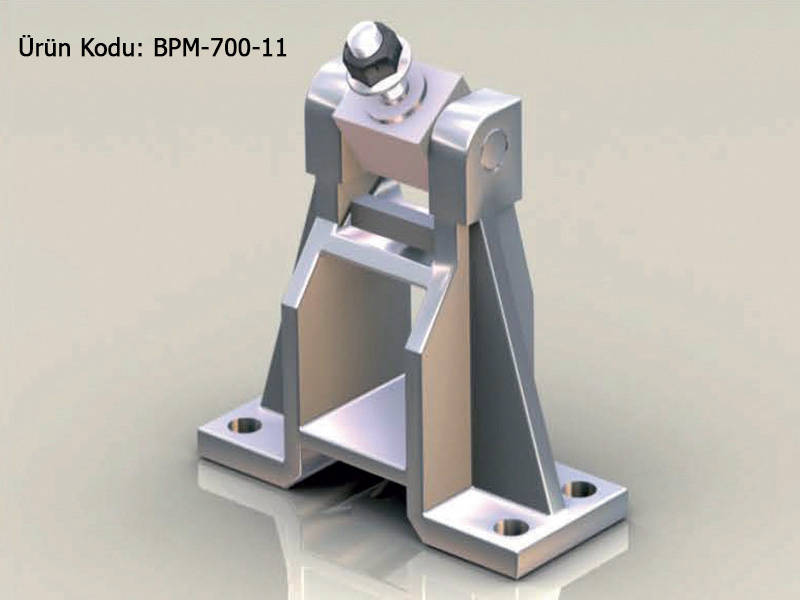

Photo Gallery
