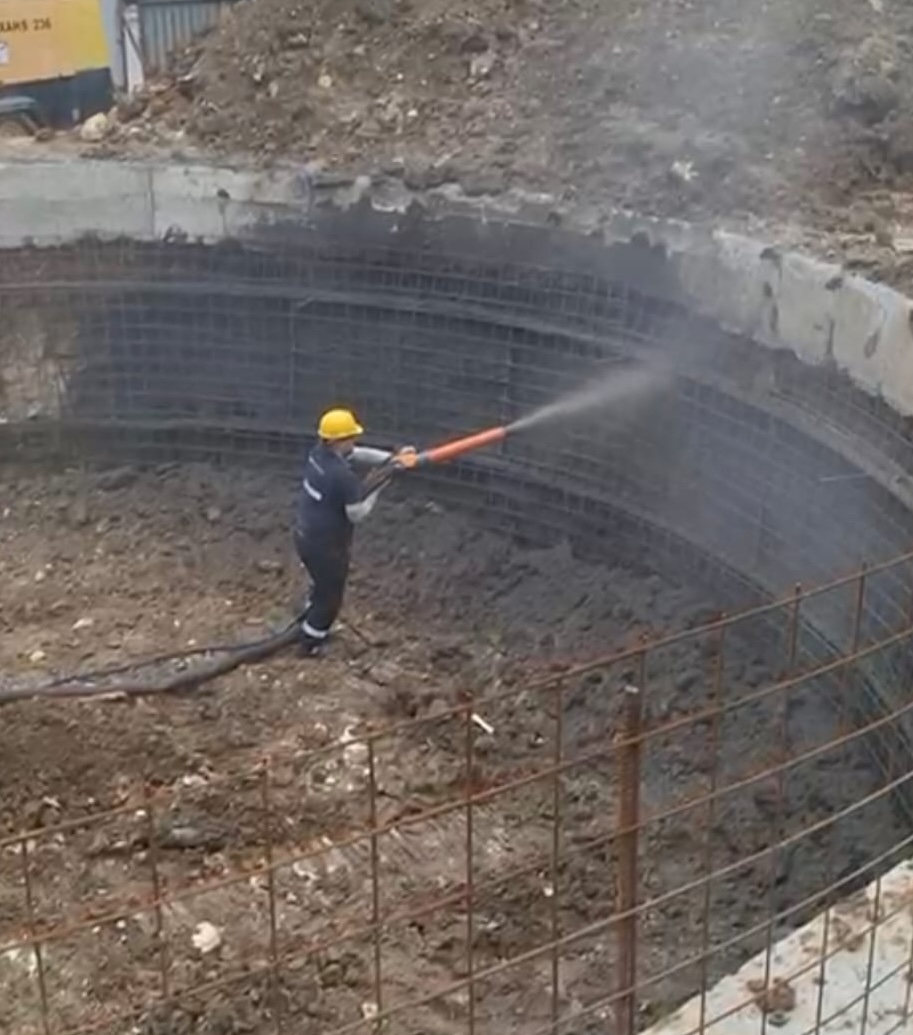

Material Science and Operational Efficiency in Shotcrete

Success in shotcrete applications is achieved not only by having a powerful machine but also by using the correct material mix (recipe) and managing equipment maintenance practically. The two biggest factors determining field efficiency are the content of the mix and how quickly wear parts can be replaced.

• Aggregate and Gradation: Usually 0-10 mm or 0-12 mm screened sand and gravel. Improper distribution leads to hose clogging.

• Cement Ratio: Higher than standard concrete due to the critical nature of setting time.

• Accelerators: Chemicals that ensure the concrete sets in seconds. Must be added precisely via a dosing pump.

• Micro Silica and Fiber: Micro silica for impermeability; fiber reinforcement (steel or polypropylene) for crack resistance and flexibility.

• Rotor and Plate Replacement: Top and bottom rubber plates and steel plates can be replaced in minutes thanks to advanced mounting systems.

• Nozzle Assembly: Modular water rings or wet system nozzle components allow for rapid cleaning during blockages.

• Couplings: Victaulic couplings and heavy-duty clamps allow for hose changes in seconds.
