Critical Duo for Shotcrete Machines: The Balance Between Steel Plates and Rubber Plates
Critical Duo for Sprayed Concrete Machines: The Balance Between Wear Plates and Rubber Discs
In sprayed concrete projects, efficiency is measured not just by a powerful motor, but by the perfect contact of the parts at the machine's heart. Especially in concrete spraying machine (in other words, shotcrete machines) systems, the healthy rotation of the rotor depends on the millimetric alignment between the Steel Plate (often referred to as the Rotor Disc or Wear Plate) and the Rubber Plate (commonly known as the Friction Disc or Seal).
On-site, these two parts must complement each other like the gears of a watch. During operation, there is constant friction and high pressure between the Rotor Disc and the rubber components. If these parts are not perfectly compatible, the following chronic problems will slow down your operation:
Air Leakage and Pressure Loss: When the Rubber Plate (the Seal) does not sit perfectly on the Wear Plate (the Steel Disc), the system begins to leak air.
Flow Issues: The resulting pressure loss prevents the concrete from being projected at the desired distance and causes clogs inside the machine.
Premature Wear: If the surface of the Rotor Disc is not smooth enough ("mirror finish"), it shaves the rubber components like sandpaper while rotating, quickly ending their service life.
Overheating: High friction caused by incompatible parts leads to overheating of the rotor group and strains the machine's motor.
A high-quality Friction Disc must be flexible against the abrasive effects of concrete, while a premium Wear Plate must be manufactured with maximum hardness against friction. At Denmak Makina, we conduct R&D optimizations to ensure these two opposite materials work at peak performance without damaging each other.
Unlike standard parts found on the market, Denmak manufactures all critical components in-house for BPM 750, DM90, RPM200, and 264 models.

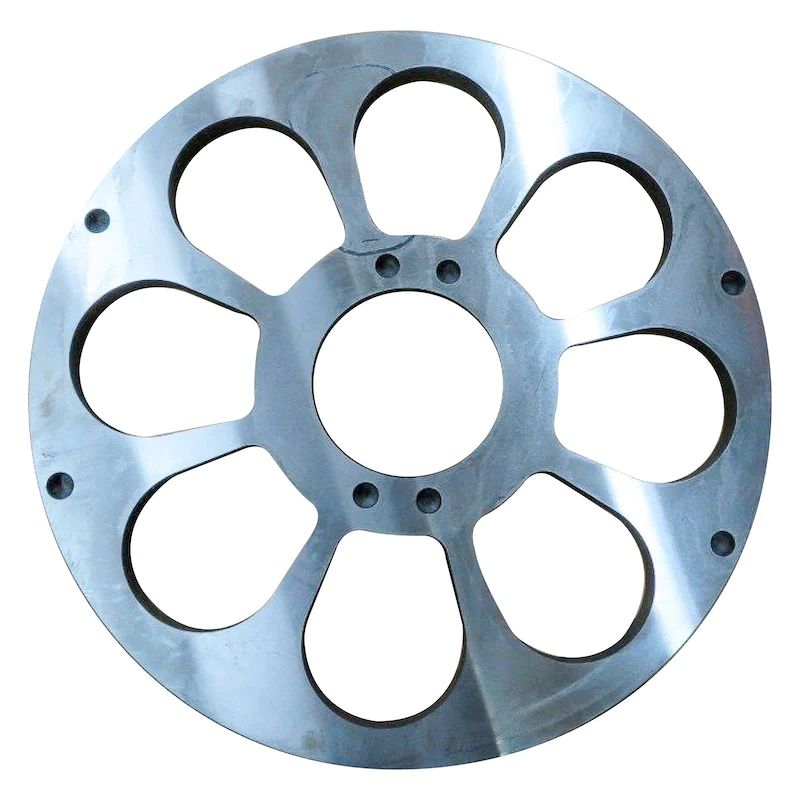

Special Alloy Steel: Heat-treated Steel Discs and Wear Plates with surfaces polished to micron-level smoothness.

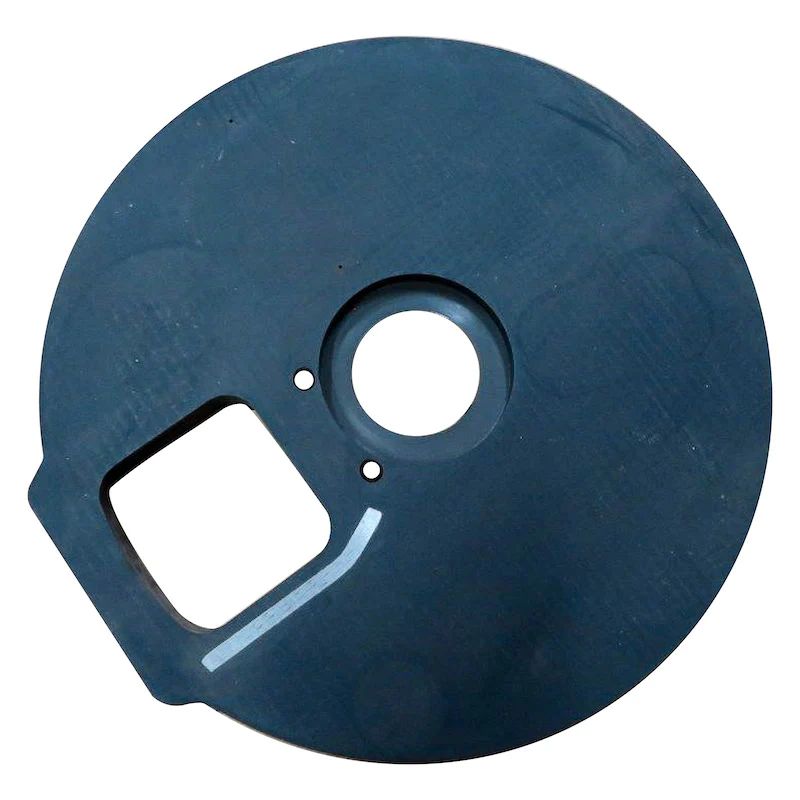

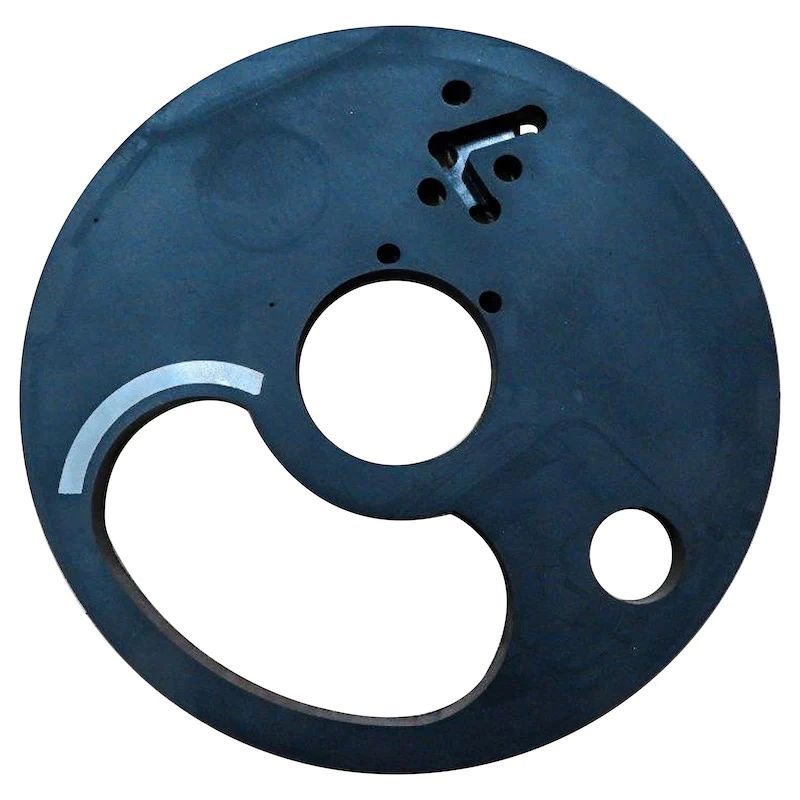

High-Condition Rubber: Specially formulated Rubber Plates and gaskets resistant to chemicals and high heat.
Polyurethane Nozzle: In other words, the Spray Gun tip; ensures the concrete is delivered to the application surface at the most accurate angle.
Connection Equipment: Clamps and Hose Connections designed for a secure flow line.
Proper part selection and quality are of vital importance for concrete spraying machines.
Choosing original spare part sets manufactured by Denmak adds the following value to your project:
Lower Costs: Part replacement intervals are extended, and site downtime is reduced.
Material Savings: Thanks to constant pressure, the rebound rate decreases, preventing concrete waste.
Machine Health: Unbalanced loads on rotor bearings are prevented, extending the machine's life.
