Common Problems in Injection Applications and How to Solve Them

Grout seeping back out of the borehole during injection prevents pressure from reaching its target and causes both material and time loss. This is the most common problem in ground injection applications and typically results from mechanical packer selection or installation errors.

Root Causes

• Wrong packer size: A mechanical packer that doesn't match the borehole diameter cannot provide adequate sealing.

• Insufficient tightening: The packer sleeve not fully seating inside the hole and incomplete compression.

• Borehole quality: A rough or dirty borehole wall left after drilling creates gaps between the packer and the wall.

• Excessive initial pressure: Applying pressure before the packer is properly set, exceeding its holding capacity.

Solutions

Using a packer that precisely matches the borehole diameter is the fundamental fix. After compression, a short low-pressure test should be performed to verify the seal. For high-pressure applications such as dam, tunnel, or ground improvement projects, steel packers should be preferred to guarantee both strength and sealing integrity.

Once the borehole is complete, it should be cleaned with pressurized water or air before the packer is inserted. Double packer systems also offer significantly more reliable sealing than single packers, particularly in fractured rock and weathered ground formations.

A blocked hose forces the injection pump to overwork and wastes valuable operation time. Cement-based grout setting (hardening) inside the hose is one of the most common complaints from field teams.

Root Causes

• Clumping in the mix: Cement not fully dispersed inside the mixer, forming lumps.

• Neglected cleaning: Not flushing the hose with clean water during breaks allows rapid hardening.

• Wrong aggregate size: Aggregate (sand) that is too coarse for the hose inner diameter causes buildup, especially at bends.

• Long waiting times: Leaving the mix idle after batching, which in hot weather significantly shortens setting time.

Solutions

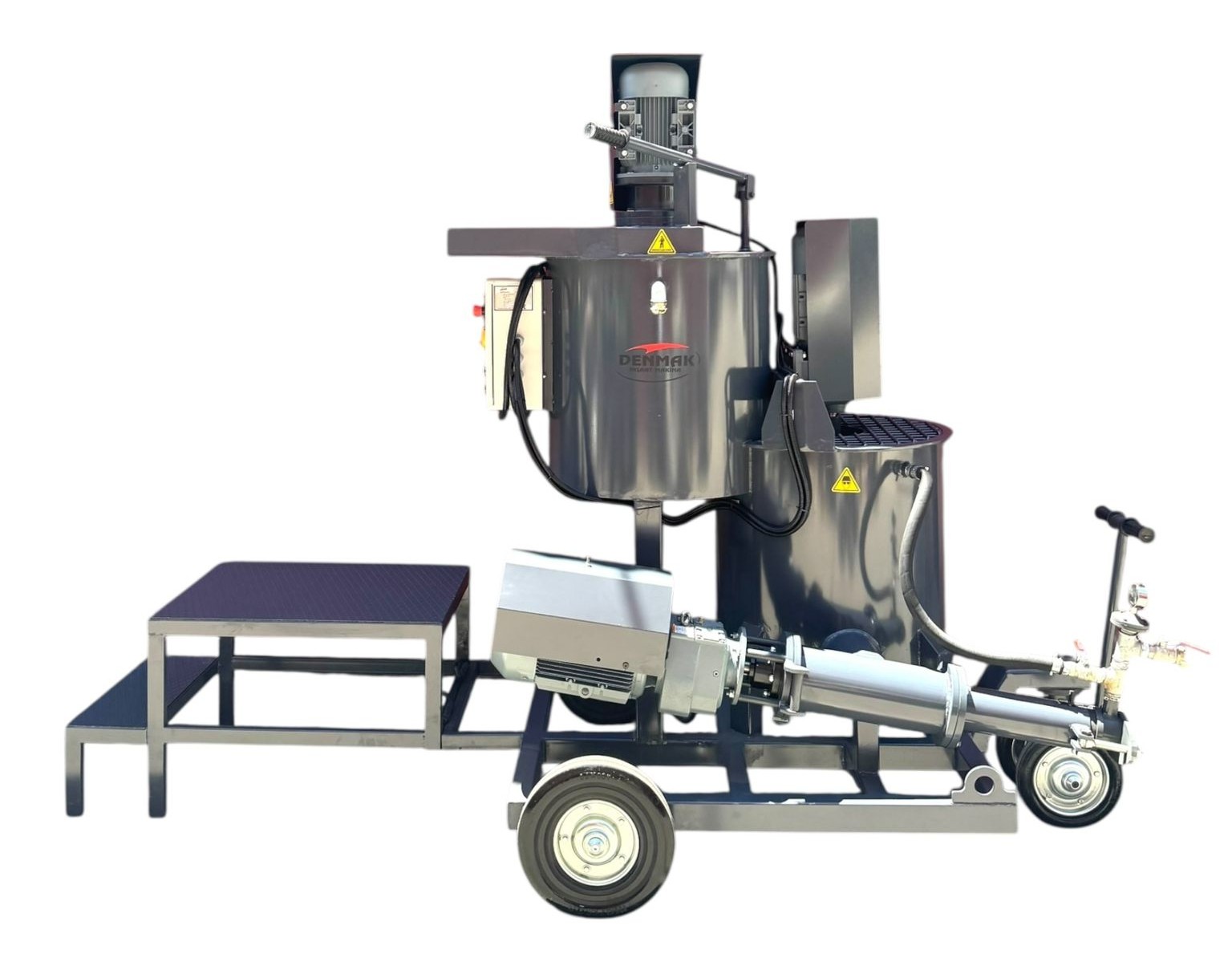

The mix must always be prepared in a high-speed turbulence mixer. Low-speed mixers cannot disperse cement homogeneously and lay the groundwork for clumping. Every time the operation pauses, the entire line — including priming hoses — must be flushed with clean water immediately.

If aggregate is used, sand particle size should not exceed one-third of the hose inner diameter. In hot weather applications, using a retarder additive reduces both blockage risk and premature reaction problems.

Failure of the cement grout to reach the required depth or crack is one of the most critical causes of ground injection failure. In this case, the work neither achieves its purpose nor meets the ground improvement objective.

Root Causes

• Insufficient pump capacity: The hydraulic injection pump's pressure rating being lower than the ground resistance.

• High viscosity: An overly thick grout mix makes it difficult to enter fine cracks and pores.

• Mix incompatible with soil type: Standard cement grout failing to penetrate the pores of clay soils.

• Line losses: Long hose runs and leaks at connection points reduce pressure.

Solutions

Selecting a hydraulic injection pump suited to the application is the first step. Pump selection should consider not only maximum pressure, but also flow capacity, operational continuity, and compatibility with the ground type.

If grout is not penetrating the cracks, two approaches can be taken: increasing the water-to-cement ratio to make the mix more fluid, or adding micro cement, sodium silicate, or acrylic-based chemical admixtures to improve penetration. In fine-grained rock formations or dense soils where standard injection falls short, jet grouting offers an alternative ground improvement method.

Water permeability (Lugeon) tests conducted before injection provide critical data on ground resistance and directly guide pump and mix selection.

Packer blowout is one of the most dangerous incidents during injection operations and can cause serious injuries. It should therefore be treated not merely as a technical problem, but as a primary workplace safety issue.

Root Causes

• Insufficient anchoring: The packer not being properly anchored to the ground or concrete.

• Pressure overload: Applied pressure exceeding the packer's holding capacity.

• Dirty borehole: Drilling debris left uncleaned prevents the packer from fully gripping inside the hole.

• Concrete quality: Inadequate or aged concrete surfaces prevent the packer sleeve from fully tightening.

Solutions

The borehole must be cleaned before packer installation, and compression must be fully completed. The packer's holding strength should be manually verified before injection begins. For high-pressure applications (dam sealing injection, deep rock injection, etc.), high-pressure rated steel packers should be used instead of standard mechanical packers.

At working pressures of 50 bar and above, a safety restraint system (safety chain or safety lanyard) that prevents the packer from blowing back must always be used. Field team training and continuous pressure limit monitoring also play a critical role in minimizing this risk.

The vast majority of the problems described above can be prevented with proper preparation before the operation begins. Most technical failures on site stem from skipped equipment checks, inadequate ground surveys, or failure to verify that consumables are appropriate for the project.

Equipment Checklist

• Packer diameter matched to borehole diameter?

• Hydraulic injection pump pressure capacity suited to ground resistance?

• Turbulence mixer operating speed checked?

• Hose inner diameter compatible with aggregate particle size?

• Pressure gauges calibrated?

• Spare packer sleeves and hose cleaning equipment on hand?

Ground Survey and Mix Selection

Soil type (sand, clay, rock, fill), formation permeability, and existing structural foundation data directly determine the injection mix. Standard cement grout (water/cement mix) does not deliver optimal results for every ground type; in some cases micro cement, polyurethane, silicate gel, or epoxy-based injection materials provide far more effective ground improvement.

A trial injection (test injection) performed before the project begins is the most reliable method for optimizing both mix ratio and pump pressure against actual ground conditions.

• If grout is blowing back: Check packer size, repeat the seal test, switch to a steel packer if necessary.

• If the hose is blocking: Flush the line with clean water, revise the mix ratio, reduce aggregate size.

• If pressure is insufficient: Evaluate pump capacity, make the grout more fluid, try a chemical admixture.

• If there is a packer blowout risk: Attach a safety lanyard, do not exceed pressure limits, use a certified safety packer.

• If the mix is clumping: Increase turbulence mixer speed, extend mixing time.

Conclusion

Most problems encountered during injection stem from overloading equipment beyond its capacity or from inadequate preparation. The quality of consumables — packers and hoses — is just as vital as choosing the right injection machine.

Selecting the correct mix for the soil type, monitoring pressure values consistently, and ensuring the field team is technically trained are the cornerstones of a successful ground injection or structural reinforcement operation. Keeping spare packer sleeves and hose cleaning equipment readily available at all times ensures operations continue without interruption.

Frequently Asked Questions

When is ground injection applied? Ground injection is used to increase the bearing capacity of existing structures, prevent foundation settlement, stop underground water ingress, and as part of earthquake retrofitting. It is widely preferred in clay, sandy, loose fill, and karst formations.

What is the difference between cement injection and chemical injection? Cement injection (grout injection) is ideal for filling large voids and coarse-grained soils. Chemical injection (polyurethane, silicate, acrylic) is preferred for fine cracks, areas with active water ingress, and narrow formations where cement grout cannot penetrate.

How is injection pressure determined? Injection pressure depends on soil type, application depth, and crack/void geometry. For contact grouting beneath foundations, 2–10 bar is usually sufficient, while consolidation grouting in rock formations may require 50–100 bar or more. Optimal pressure range should be determined by Lugeon testing or a trial injection.

How long does an injection operation take? Duration varies greatly depending on project scope, ground permeability, and the injection method used. Small-scale foundation reinforcement can be completed in a few days, while extensive ground improvement works in dam or tunnel projects may take weeks.
